715P10296JA3

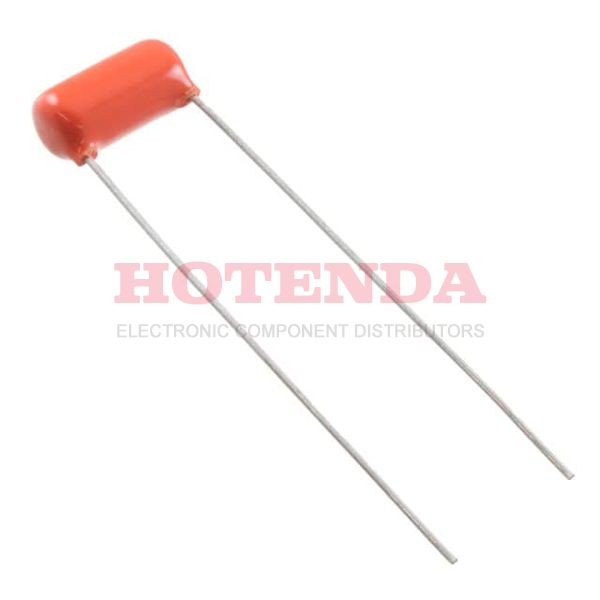

  • 715P10296JA3 - Orange Drop® 715P 1000pF Film Capacitor ±10% Radial PC Pins 600V-DC 200V-AC Polypropylene (PP), Metallized
  • 715P10296JA3 - Orange Drop® 715P 1000pF Film Capacitor ±10% Radial PC Pins 600V-DC 200V-AC Polypropylene (PP), Metallized

715P10296JA3

715P10296JA3

Cornell Dubilier Electronics (CDE)

Orange Drop® 715P 1000pF Film Capacitor ±10% Radial PC Pins 600V-DC 200V-AC Polypropylene (PP), Metallized

SOT-23

715P10296JA3 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 22 Weeks
Mounting Type Through Hole
Package / Case Radial
Surface MountNO
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~85°C
PackagingBulk
Series Orange Drop® 715P
Size / Dimension 0.350Diax0.701L 8.90mmx17.80mm
Tolerance ±10%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching; High Pulse, DV/DT; Snubber
Additional FeatureRATED AC VOLTAGE (V): 200
Capacitance 1000pF
Voltage - Rated DC 600V
Reach Compliance Code unknown
Voltage - Rated AC 200V
Capacitor Type FILM CAPACITOR
Lead Spacing0.500 12.70mm
Rated (DC) Voltage (URdc) 600V
Height Seated (Max) 0.642 16.30mm
RoHS StatusROHS3 Compliant
In-Stock:3749 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.805517$1.805517
10$1.703318$17.03318
100$1.606904$160.6904
500$1.515947$757.9735
1000$1.430138$1430.138

715P10296JA3 Product Details

715P10296JA3 Overview


System function requires a rated (DC) voltage (URdc) of 600V.This electrical device has a 0.500 12.70mm lead spacing.In a temperature range of -55°C~85°C, the device can be operated.

715P10296JA3 Features


a rated (DC) voltage (URdc) of 600V

715P10296JA3 Applications


There are a lot of Cornell Dubilier Electronics (CDE) 715P10296JA3 applications of film capacitors.

  • Audio/video equipment
  • Filters
  • Global positioning systems
  • Snubbering
  • Industrial and automotive inverters
  • RF Modules
  • Coupling, decoupling
  • IGBT
  • Blocking
  • Switch mode power supplies
