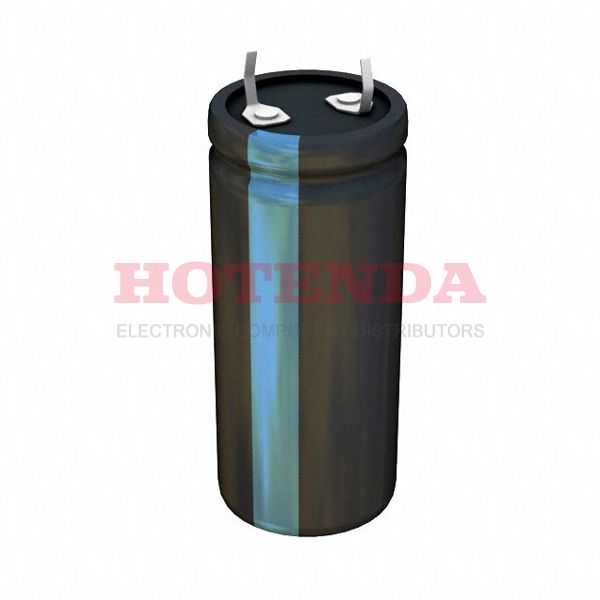

380LX183M063A082 Overview
In terms of ripple current, it is 10.8A @ 20kHz at full charge.It is necessary to provide the ESR (Equivalent Series Resistance) of 23mOhm @ 120Hz so that it can fully perform its functions.During the lowest charge, ripple current is 9.4A @ 120Hz.You should keep the seated height (Max) below 3.228 82.00mm.Despite its 20 % dissipation factor, it still operates.Voltage - Rated DC of 63V is required to operate this capacitor.It is recommended to maintain the operating temperature at -40°C~85°C in order to maximize efficiency.
380LX183M063A082 Features
the ripple current is 10.8A @ 20kHz.
the ripple current is 9.4A @ 120Hz.
a dissipation factor of 20 %
voltage - Rated DC of 63V
an operating temperature of -40°C~85°C
380LX183M063A082 Applications
There are a lot of Cornell Dubilier Electronics (CDE) 380LX183M063A082 applications of aluminum electrolytic capacitors.
- Energy storage in pulse systems
- Computer motherboards
- Frequency converters
- Uninterruptible power supplies
- Telecommunication
- Industrial systems
- Standard and switched mode power supplies
- Computer
- Power supplies
- Smoothing and filtering applications
