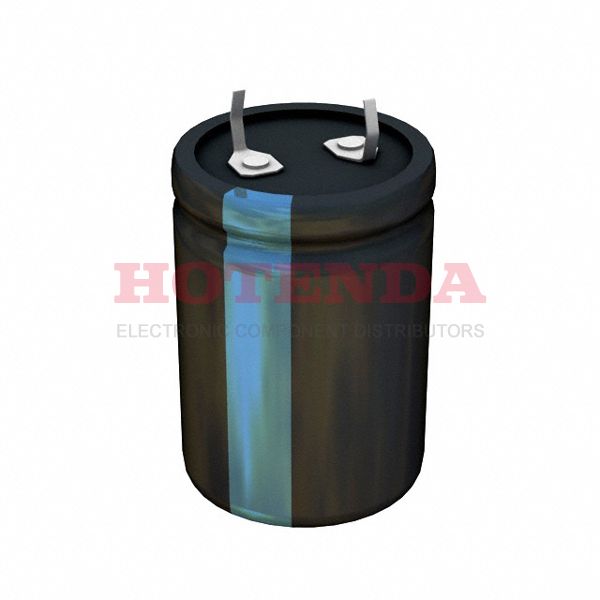

380LQ472M063J032 Overview
Full charge should result in a ripple current of 4.13A @ 20kHz.88mOhm @ 120Hz must have the ESR (Equivalent Series Resistance) to function properly.It is 3.59A @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 1.457 37.00mm.This capacitor operates from a voltage - Rated DC of 63V.The operating temperature should be maintained at -40°C~85°C for high efficiency.
380LQ472M063J032 Features
the ripple current is 4.13A @ 20kHz.
the ripple current is 3.59A @ 120Hz.
voltage - Rated DC of 63V
an operating temperature of -40°C~85°C
380LQ472M063J032 Applications
There are a lot of Cornell Dubilier Electronics (CDE) 380LQ472M063J032 applications of aluminum electrolytic capacitors.
- Telecommunication
- Standard and switched mode power supplies
- Smoothing and filtering applications
- Industrial systems
- Energy storage in pulse systems
- Uninterruptible power supplies
- Computer
- Frequency converters
- Power supplies
- Computer motherboards
