225P39391WD3

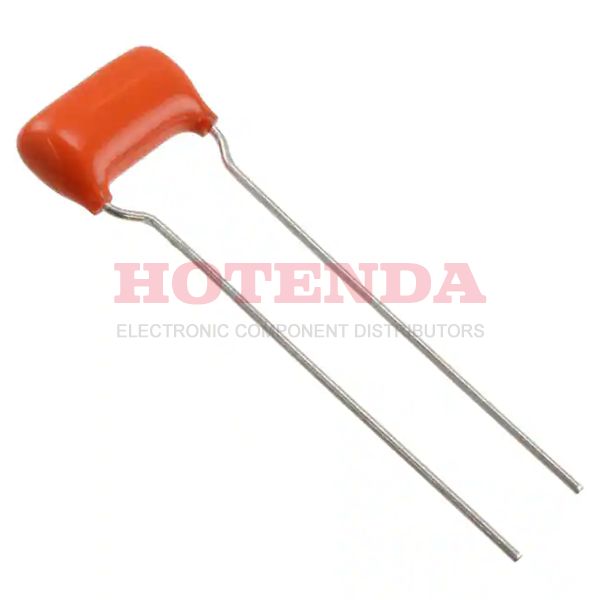

  • 225P39391WD3 - Orange Drop® 225P 0.039μF Film Capacitor ±10% Radial PC Pins 100V-DC 70V-AC Polyester PCB, Through Hole
  • 225P39391WD3 - Orange Drop® 225P 0.039μF Film Capacitor ±10% Radial PC Pins 100V-DC 70V-AC Polyester PCB, Through Hole

225P39391WD3

225P39391WD3

Cornell Dubilier Electronics (CDE)

Orange Drop® 225P 0.039μF Film Capacitor ±10% Radial PC Pins 100V-DC 70V-AC Polyester PCB, Through Hole

SOT-23

225P39391WD3 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 22 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester
Operating Temperature-55°C~85°C
PackagingBulk
Published 2001
Series Orange Drop® 225P
Size / Dimension 0.701Lx0.299W 17.80mmx7.60mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Color Orange
Applications DC Link, DC Filtering
Additional FeatureRATED AC VOLTAGE (V): 70
HTS Code8532.25.00.70
Capacitance 0.039μF
Voltage - Rated DC 100V
Depth 7.6mm
Reach Compliance Code unknown
Voltage - Rated AC 70V
Lead Pitch 9.5mm
Capacitor Type FILM CAPACITOR
Lead Spacing0.375 9.52mm
Insulation Resistance200MOhm
Lead Diameter 800 μm
Voltage 100V
Life (Hours) 500 hours
Dissipation Factor0.75 %
Height 10.7mm
Height Seated (Max) 0.421 10.70mm
RoHS StatusROHS3 Compliant
In-Stock:1689 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.960233$3.960233
10$3.736069$37.36069
100$3.524593$352.4593
500$3.325088$1662.544
1000$3.136875$3136.875

225P39391WD3 Product Details

225P39391WD3 Overview


There is 200MOhm insulation resistance from the device.Electrical devices such as this have a lead spacing of 0.375 9.52mm.It is capable of operating at -55°C~85°C degrees Celsius.

225P39391WD3 Features


200MOhm insulation resistance

225P39391WD3 Applications


There are a lot of Cornell Dubilier Electronics (CDE) 225P39391WD3 applications of film capacitors.

  • Audio/video equipment
  • TV and monitor sets
  • Satellite TV
  • RF Modules
  • Snubbering
  • Test and measuring equipment
  • Mobile communications
  • RFI for automotive
  • Matching networks
  • VCO's
