160683K630L-F

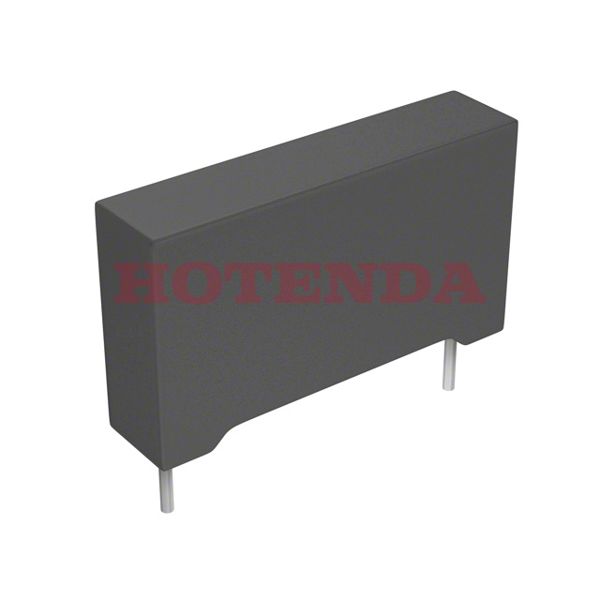

  • 160683K630L-F - 160 0.068μF Film Capacitor ±10% Radial PC Pins 630V-DC 220V-AC Polyester, Metallized Through Hole
  • 160683K630L-F - 160 0.068μF Film Capacitor ±10% Radial PC Pins 630V-DC 220V-AC Polyester, Metallized Through Hole

160683K630L-F

160683K630L-F

Cornell Dubilier Electronics (CDE)

160 0.068μF Film Capacitor ±10% Radial PC Pins 630V-DC 220V-AC Polyester, Metallized Through Hole

SOT-23

160683K630L-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 11 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2012
Series 160
Size / Dimension 1.043Lx0.236W 26.50mmx6.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 220
HTS Code8532.25.00.70
Capacitance 0.068μF
Voltage - Rated DC 630V
Voltage - Rated AC 220V
Lead Pitch 22.5mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.886 22.50mm
Life (Hours) 1000 hours
Height 15mm
Height Seated (Max) 0.591 15.00mm
Length 26.5mm
Width 6mm
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:7174 items

Pricing & Ordering

QuantityUnit PriceExt. Price

160683K630L-F Product Details

160683K630L-F Overview


0.886 22.50mm is the lead spacing of this electrical device.It is capable of operating at -55°C~105°C degrees Celsius.

160683K630L-F Features




160683K630L-F Applications


There are a lot of Cornell Dubilier Electronics (CDE)
160683K630L-F applications of film capacitors.


  • Bypassing
  • RFI for automotive
  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
