160683K630H-F

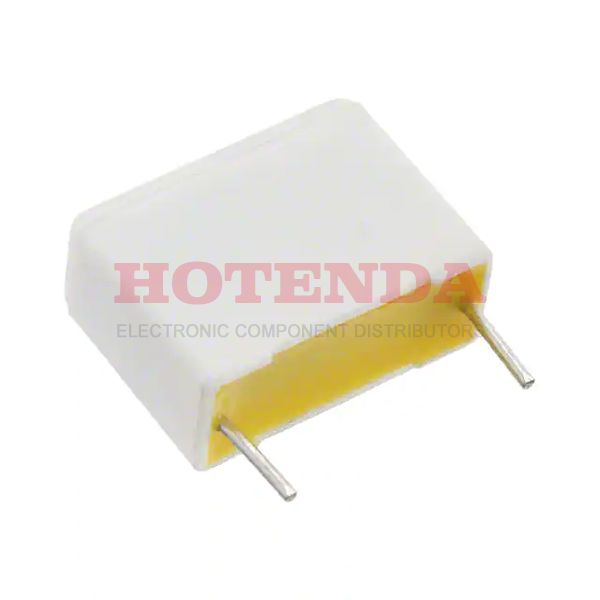

  • 160683K630H-F - 160 0.068μF Film Capacitor ±10% Radial PC Pins 630V-DC 220V-AC Polyester, Metallized Through Hole
  • 160683K630H-F - 160 0.068μF Film Capacitor ±10% Radial PC Pins 630V-DC 220V-AC Polyester, Metallized Through Hole

160683K630H-F

160683K630H-F

Cornell Dubilier Electronics (CDE)

160 0.068μF Film Capacitor ±10% Radial PC Pins 630V-DC 220V-AC Polyester, Metallized Through Hole

SOT-23

160683K630H-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2013
Series 160
Size / Dimension 0.709Lx0.295W 18.00mmx7.50mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 220
HTS Code8532.25.00.70
Capacitance 0.068μF
Voltage - Rated DC 630V
Voltage - Rated AC 220V
Lead Pitch 15mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.591 15.00mm
Size Code 7130
Life (Hours) 1000 hours
Height 13.5mm
Height Seated (Max) 0.532 13.50mm
Length 18mm
Width 7.5mm
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:8777 items

Pricing & Ordering

QuantityUnit PriceExt. Price

160683K630H-F Product Details

160683K630H-F Overview


Electrical devices with 0.591 15.00mm lead spacing are used in this application.The device is capable of operating at the temperature of -55°C~105°C.

160683K630H-F Features



160683K630H-F Applications


There are a lot of Cornell Dubilier Electronics (CDE) 160683K630H-F applications of film capacitors.

  • Bypassing
  • Coupling, decoupling
  • Test and measuring equipment
  • RF Modules
  • Battery management system
  • RFI for automotive
  • Lighting
  • TV and monitor sets
  • Global positioning systems
  • Compact fluorescent lamps (CFL)
