150472J1000DB

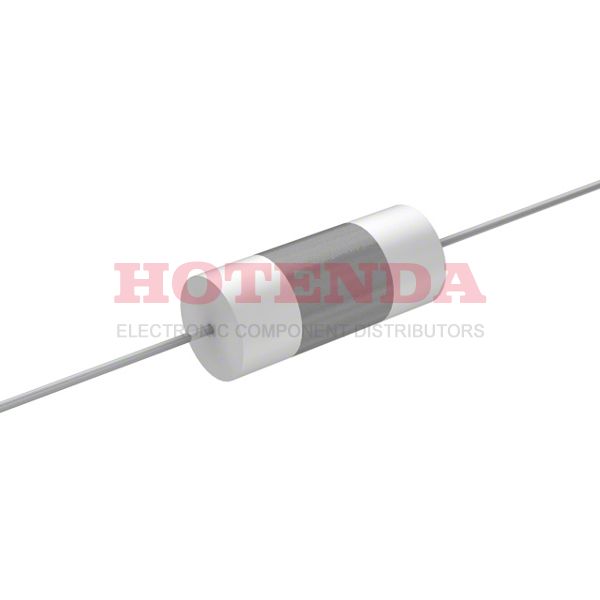

  • 150472J1000DB - 150 4700pF Film Capacitor ±5% Axial PC Pins 1kV-DC 250V-AC Polyester, Metallized Through Hole
  • 150472J1000DB - 150 4700pF Film Capacitor ±5% Axial PC Pins 1kV-DC 250V-AC Polyester, Metallized Through Hole

150472J1000DB

150472J1000DB

Cornell Dubilier Electronics (CDE)

150 4700pF Film Capacitor ±5% Axial PC Pins 1kV-DC 250V-AC Polyester, Metallized Through Hole

SOT-23

150472J1000DB Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 20 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~125°C
PackagingBulk
Published 2012
Series 150
Size / Dimension 0.276Diax0.650L 7.00mmx16.50mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Additional FeatureRATED VOLTAGE(VAC):250
HTS Code8532.25.00.60
Capacitance 4700pF
Voltage - Rated DC 1kV
Voltage - Rated AC 250V
Capacitor Type FILM CAPACITOR
Dielectric PET
Rated (DC) Voltage (URdc) 1000V
Life (Hours) 1000 hours
Diameter 6.5mm
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:9266 items

Pricing & Ordering

QuantityUnit PriceExt. Price

150472J1000DB Product Details

150472J1000DB Overview


System function requires a rated (DC) voltage (URdc) of 1000V.-55°C~125°C is the maximum temperature at which the device can operate.

150472J1000DB Features


a rated (DC) voltage (URdc) of 1000V

150472J1000DB Applications


There are a lot of Cornell Dubilier Electronics (CDE) 150472J1000DB applications of film capacitors.

  • RFI for automotive
  • Satellite TV
  • Matching networks
  • Lighting
  • Filtering
  • TV and monitor sets
  • IGBT
  • Filters
  • Industrial and automotive inverters
  • RF Modules
