Name: Z8F3222AR020SC
Brand: Zilog
SKU: Z8F3222AR020SC
Availability: InStock

new-10%

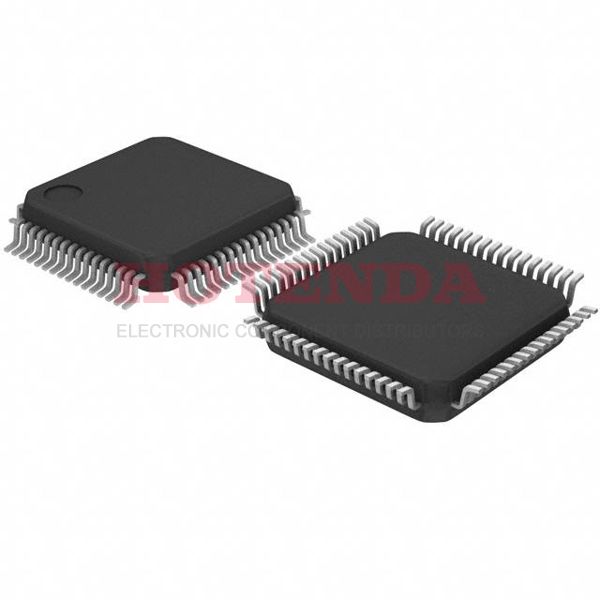

Z8F3222AR020SC

Manufacturer part number:Z8F3222AR020SC

Manufacturer:Zilog

Description:32KB 32K x 8 FLASH eZ8 8-Bit Microcontroller Encore!® XP® Series Z8F3222 64 Pin 20MHz 3.3V 64-LQFP

Case Package:SOT-23

Datasheet:Z8F3222AR020SC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	64-LQFP
Surface Mount	YES
Number of Pins	64
Operating Temperature	0°C~70°C TA
Packaging	Tray
Series	Encore!® XP®
Published	2006
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Terminal Finish	Tin/Lead (Sn/Pb)
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Frequency	20MHz
Time@Peak Reflow Temperature-Max (s)	10
Base Part Number	Z8F3222
Pin Count	64
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3V
Supply Voltage-Min (Vsup)	3V
Interface	I2C, IrDA, SPI, UART, USART
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	46
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	eZ8
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 32K x 8
Connectivity	I2C, IrDA, SPI, UART/USART
Supply Current-Max	11.7mA
Bit Size	8
Data Converter	A/D 12x10b
Access Time	20 μs
Has ADC	YES
DMA Channels	YES
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
ROM (words)	32768
Core Architecture	Z8
CPU Family	Z8
Length	10mm
Height Seated (Max)	1.6mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

Z8F3222AR020SC Product Details

Z8F3222AR020SC Overview

64-LQFP-packages are available. There are 46 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of 0°C~70°C TA for this Microcontroller. An electrical component of this type belongs to the Encore!® XP® series. This program memory has a size of 32KB 32K x 8, which indicates what the size of the program memory is. eZ8 Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 64 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 3.3V volts. There are YES DMA channels on this Microcontroller chip. The part has a memory size of 32kB. The base part number Z8F3222 provides alternatives. This device is extremely efficient when operated at a frequency of 20MHz. Using the PWM channel YES, the device works with the motor. In this chip, 64 pins can be accessed. It has 64 pins in total. In addition to this, the device is embedded with the the Z8 CPU family. As a result of its Z8 core architecture, it can be used in many applications.
