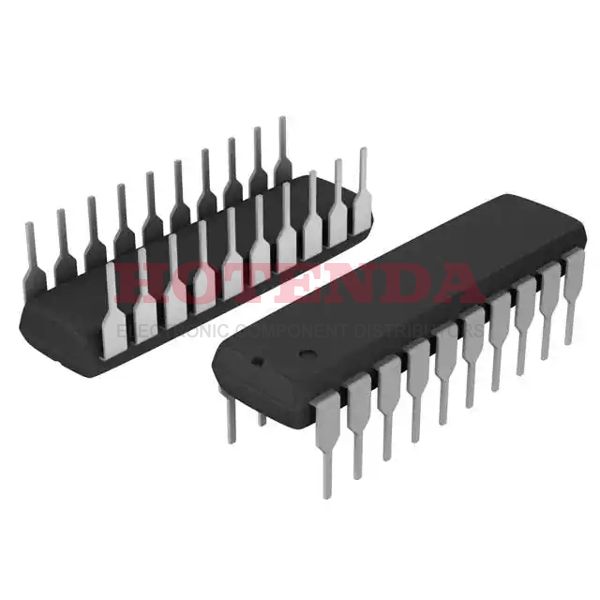

Name: Z8F0813PH005SG
Brand: Zilog
SKU: Z8F0813PH005SG
Availability: InStock

new-10%

Z8F0813PH005SG

Manufacturer part number:Z8F0813PH005SG

Manufacturer:Zilog

Description:8KB 8K x 8 FLASH eZ8 8-Bit Microcontroller Encore!® XP® Series Z8F0813 20 Pin 5MHz 3V 20-DIP (0.300, 7.62mm)

Case Package:SOT-23

Datasheet:Z8F0813PH005SG Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	23 Weeks
Mounting Type	Through Hole
Package / Case	20-DIP (0.300, 7.62mm)
Surface Mount	NO
Number of Pins	20
Operating Temperature	0°C~70°C TA
Packaging	Tube
Series	Encore!® XP®
Published	2011
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
Terminal Finish	Tin (Sn)
Max Power Dissipation	430mW
Terminal Position	DUAL
Supply Voltage	3V
Frequency	5MHz
Base Part Number	Z8F0813
Pin Count	20
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.6V
Interface	IrDA, UART, USART
Memory Size	8kB
Oscillator Type	Internal
Number of I/O	16
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	2.7V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	eZ8
Peripherals	Brown-out Detect/Reset, LED, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	8KB 8K x 8
Connectivity	IrDA, UART/USART
Bit Size	8
Watchdog Timer	Yes
Access Time	5 μs
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	2
CPU Family	Z8
Height Seated (Max)	4.49mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

Z8F0813PH005SG Product Details

Z8F0813PH005SG Overview

20-DIP (0.300, 7.62mm)-packages are available. There are 16 I/O ports on this device. Device mounting type Through Hole is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of 0°C~70°C TA for this Microcontroller. An electrical component of this type belongs to the Encore!® XP® series. This program memory has a size of 8KB 8K x 8, which indicates what the size of the program memory is. eZ8 Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 20 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 3V volts. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 8kB. The base part number Z8F0813 provides alternatives. This device is extremely efficient when operated at a frequency of 5MHz. Using the PWM channel YES, the device works with the motor. In this chip, 20 pins can be accessed. Using the timer/counter system, it has 2 timers/counters. It has 20 pins in total. In addition to this, the device is embedded with the the Z8 CPU family.
