WP56BID datasheet pdf and LED Indication - Discrete product details from Kingbright stock available on our website
SOT-23
WP56BID Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Through Hole
Mounting Type
Through Hole
Package / Case
Radial
Packaging
Bulk
Published
2011
Feature
Flashing
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
ECCN Code
EAR99
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Color
Red
Additional Feature
WITH BLINK-FUNCTION IC
HTS Code
8541.40.20.00
Number of Functions
1
Terminal Pitch
2.54mm
Configuration
Standard
Voltage - Forward (Vf) (Typ)
14V
Viewing Angle
60°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
22mA
Lens Style
Round with Domed Top
Lens Size
5mm T-1 3/4
Luminous Intensity
40 mcd
Millicandela Rating
25mcd
Lens Transparency
Diffused
Wavelength - Peak
627nm
Wavelength - Dominant
617nm
Height
8.6mm
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:26067 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.876006
$0.876006
10
$0.826421
$8.26421
100
$0.779642
$77.9642
500
$0.735512
$367.756
1000
$0.693879
$693.879
WP56BID Product Details

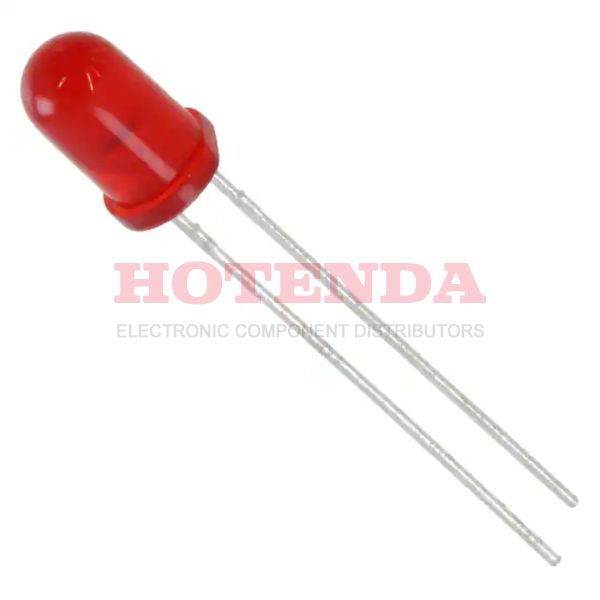

The Kingbright WP56BID is a discrete LED indication light designed for a variety of applications. It features a red diffused T-1 3/4 package and a blinking type/hold function. This LED is ideal for use in a variety of applications, including automotive, industrial, and consumer electronics. It is designed to provide a bright, long-lasting light source with low power consumption. The WP56BID is RoHS compliant and is available in a variety of colors.
Features: - Red diffused T-1 3/4 package - Blinking type/hold function - Low power consumption - RoHS compliant - Available in a variety of colors
