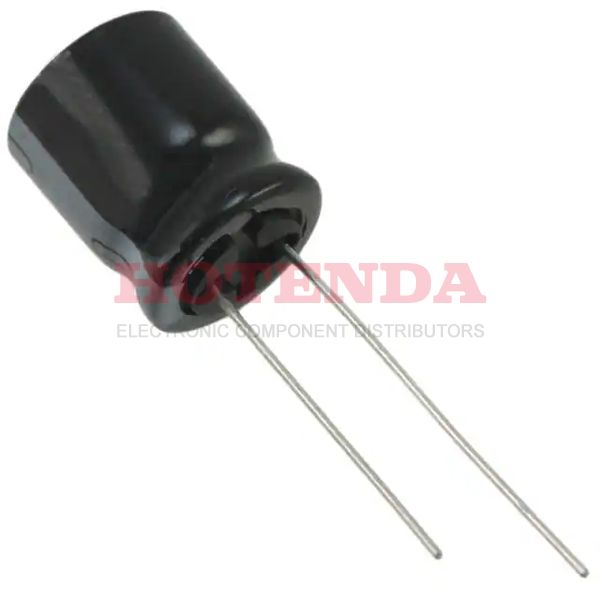

UHE2A331MHD Overview
In terms of ripple current, it is 1.28A @ 100kHz at full charge.It is necessary to provide the ESR (Equivalent Series Resistance) of 300mOhm so that it can fully perform its functions.When the charge is at the lowest, the ripple current is 896mA @ 120Hz.Sitting height (Max) should not exceed 1.575 40.00mm.Despite its 0.08 % dissipation factor, it still operates.The capacitor operates from 100V DC voltage.It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.
UHE2A331MHD Features
the ripple current is 1.28A @ 100kHz.
the ripple current is 896mA @ 120Hz.
a dissipation factor of 0.08 %
voltage - Rated DC of 100V
an operating temperature of -40°C~105°C
UHE2A331MHD Applications
There are a lot of Nichicon UHE2A331MHD applications of aluminum electrolytic capacitors.
- Energy storage in pulse systems
- Telecommunication
- Power supplies
- Standard and switched mode power supplies
- Computer
- Computer motherboards
- Industrial systems
- Frequency converters
- Smoothing and filtering applications
- Uninterruptible power supplies
