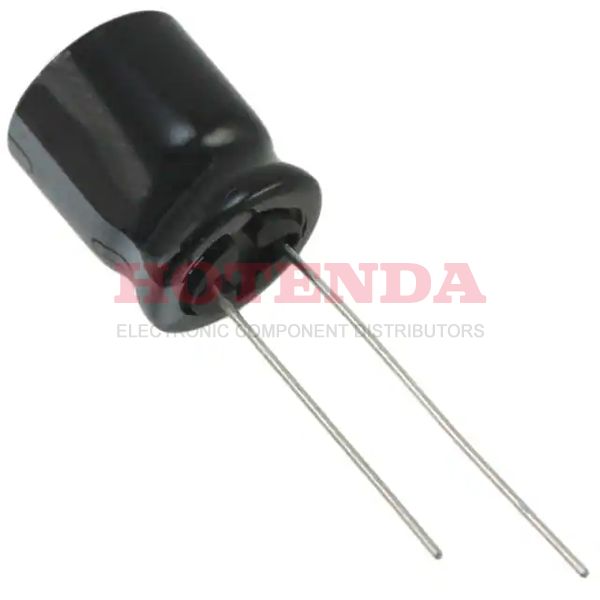

UHE1V471MHD6 Overview
A full charge means 1.45A @ 100kHz ripple current.To fully perform its function, 160mOhm needs the equivalent series resistance.When the charge is lowest, the ripple current is 1.088A @ 120Hz.It is recommended to keep the height seated (Max) below 0.591 15.00mm.There is a dissipation factor of 0.12 %.The capacitor operates at a voltage of 35V - Rated DC.If you want high efficiency, you should keep the operating temperature at -40°C~105°C.
UHE1V471MHD6 Features
the ripple current is 1.45A @ 100kHz.
the ripple current is 1.088A @ 120Hz.
a dissipation factor of 0.12 %
voltage - Rated DC of 35V
an operating temperature of -40°C~105°C
UHE1V471MHD6 Applications
There are a lot of Nichicon UHE1V471MHD6 applications of aluminum electrolytic capacitors.
- Uninterruptible power supplies
- Power supplies
- Computer motherboards
- Energy storage in pulse systems
- Telecommunication
- Smoothing and filtering applications
- Industrial systems
- Frequency converters
- Computer
- Standard and switched mode power supplies
