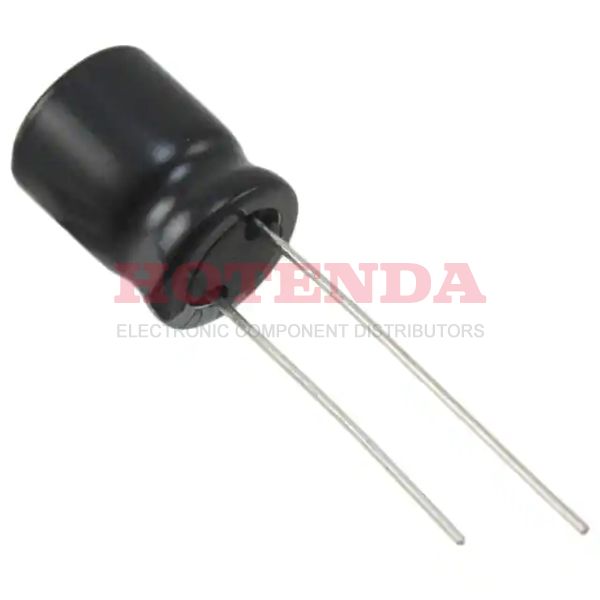

UHE1J102MHD6 Overview
A full charge has a ripple current of 1.72A @ 100kHz volts.In order to fully utilize 170mOhm, ESR (Equivalent Series Resistance) needs to be provided.When the charge is lowest, the ripple current is 1.29A @ 120Hz.Seating height (Max) should be kept below 1.240 31.50mm.Basically, it has a dissipation factor of 0.09 %.Rated DC voltage of 63V is used to operate this capacitor.It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.
UHE1J102MHD6 Features
the ripple current is 1.72A @ 100kHz.
the ripple current is 1.29A @ 120Hz.
a dissipation factor of 0.09 %
voltage - Rated DC of 63V
an operating temperature of -40°C~105°C
UHE1J102MHD6 Applications
There are a lot of Nichicon UHE1J102MHD6 applications of aluminum electrolytic capacitors.
- Computer motherboards
- Power supplies
- Energy storage in pulse systems
- Standard and switched mode power supplies
- Industrial systems
- Uninterruptible power supplies
- Smoothing and filtering applications
- Telecommunication
- Computer
- Frequency converters
