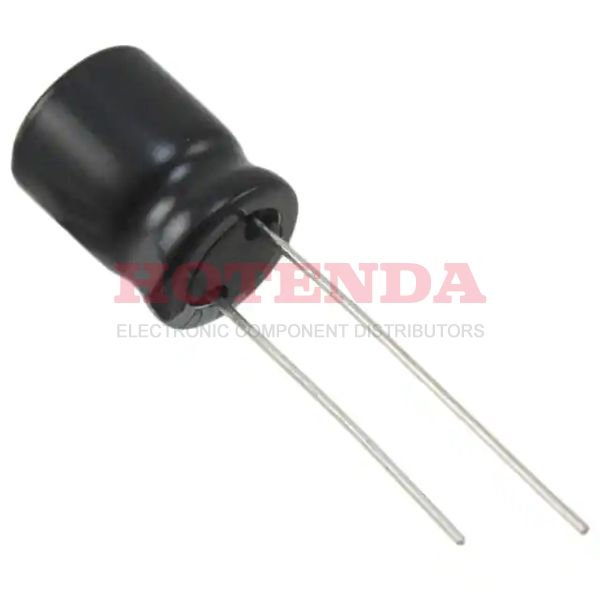

UHE1H102MHD3 Overview
At full charge, the ripple current is 2.49A @ 100kHz.The ESR (Equivalent Series Resistance) of 97mOhm needs to be provided to fully play its function.In the lowest charge, the ripple current is 1.868A @ 120Hz.Sitting height should not exceed 0.787 20.00mm (Max).Based on a dissipation factor of 0.1 %, it operates.A voltage of 50V DC is used to operate this capacitor.For high efficiency, the operating temperature should be -40°C~105°C.
UHE1H102MHD3 Features
the ripple current is 2.49A @ 100kHz.
the ripple current is 1.868A @ 120Hz.
a dissipation factor of 0.1 %
voltage - Rated DC of 50V
an operating temperature of -40°C~105°C
UHE1H102MHD3 Applications
There are a lot of Nichicon UHE1H102MHD3 applications of aluminum electrolytic capacitors.
- Standard and switched mode power supplies
- Industrial systems
- Telecommunication
- Computer
- Energy storage in pulse systems
- Smoothing and filtering applications
- Computer motherboards
- Power supplies
- Frequency converters
- Uninterruptible power supplies
