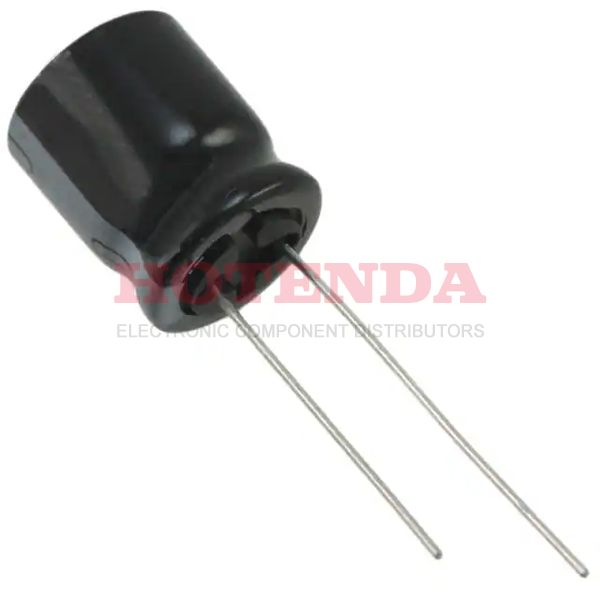

UHE1E222MHD Overview
As far as the ripple current is concerned, it is 2.88A @ 100kHz at full charge.To perform its function fully, 78mOhm is required to have an equivalent series resistance (ESR).It is 2.304A @ 120Hz at the lowest charge for ripple current.Sitting height should not exceed 1.398 35.50mm (Max).Based on a dissipation factor of 0.14 %, it operates.This capacitor operates from a voltage - Rated DC of 25V.High efficiency requires an operating temperature of -40°C~105°C.
UHE1E222MHD Features
the ripple current is 2.88A @ 100kHz.
the ripple current is 2.304A @ 120Hz.
a dissipation factor of 0.14 %
voltage - Rated DC of 25V
an operating temperature of -40°C~105°C
UHE1E222MHD Applications
There are a lot of Nichicon UHE1E222MHD applications of aluminum electrolytic capacitors.
- Telecommunication
- Uninterruptible power supplies
- Standard and switched mode power supplies
- Power supplies
- Industrial systems
- Computer
- Energy storage in pulse systems
- Frequency converters
- Smoothing and filtering applications
- Computer motherboards
