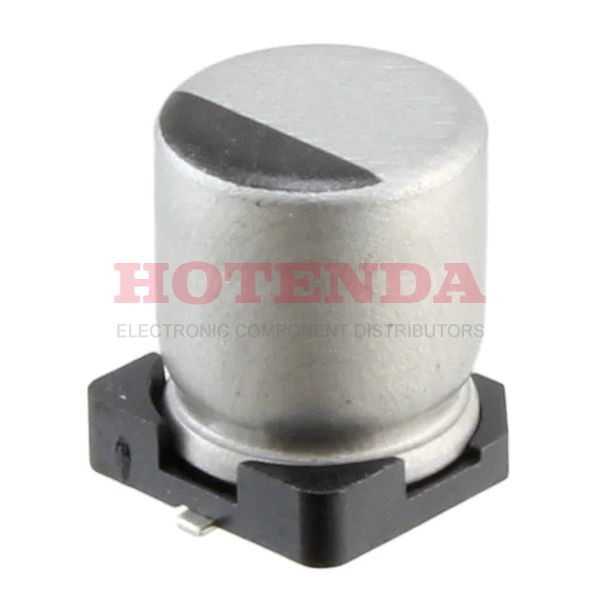

UCZ1V330MCL1GS Overview
As far as the ripple current is concerned, it is 197mA @ 100kHz at full charge.450mOhm must have the ESR (Equivalent Series Resistance) to function properly.When the charge is at the lowest, the ripple current is 98.5mA @ 120Hz.Sitting height (Max) should not exceed 0.323 8.20mm.Based on a dissipation factor of 0.16 %, it operates.Voltage - Rated DC of 35V is required to operate this capacitor.The maximum efficiency can be achieved by maintaining -40°C~125°C as the operating temperature.
UCZ1V330MCL1GS Features
the ripple current is 197mA @ 100kHz.
the ripple current is 98.5mA @ 120Hz.
a dissipation factor of 0.16 %
voltage - Rated DC of 35V
an operating temperature of -40°C~125°C
UCZ1V330MCL1GS Applications
There are a lot of Nichicon UCZ1V330MCL1GS applications of aluminum electrolytic capacitors.
- Frequency converters
- Standard and switched mode power supplies
- Telecommunication
- Energy storage in pulse systems
- Computer motherboards
- Uninterruptible power supplies
- Power supplies
- Industrial systems
- Computer
- Smoothing and filtering applications
