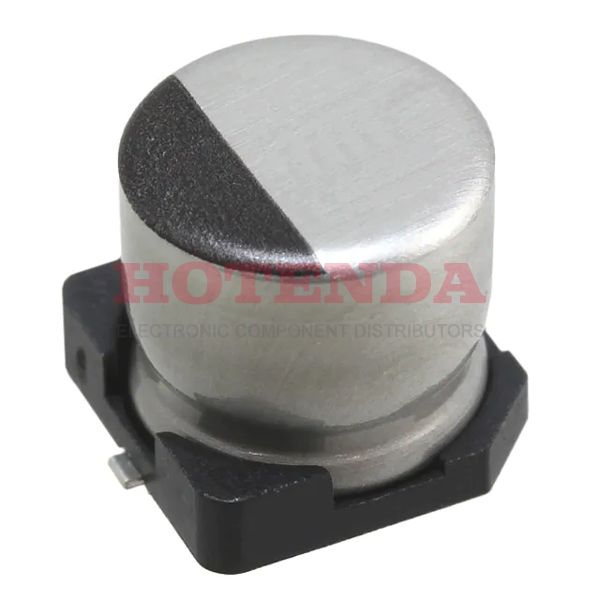

UCZ1H100MCL1GS Overview
A full charge means 51mA @ 100kHz ripple current.The ESR (Equivalent Series Resistance) of 2.8Ohm needs to be provided to fully play its function.The ripple current at the lowest charge is 25.5mA @ 120Hz.You should keep the seated height (Max) below 0.240 6.10mm.A 0.16 % dissipation factor is used.A voltage of 50V DC operates this capacitor.Maintaining -40°C~125°C as the operating temperature will maximize efficiency.
UCZ1H100MCL1GS Features
the ripple current is 51mA @ 100kHz.
the ripple current is 25.5mA @ 120Hz.
a dissipation factor of 0.16 %
voltage - Rated DC of 50V
an operating temperature of -40°C~125°C
UCZ1H100MCL1GS Applications
There are a lot of Nichicon UCZ1H100MCL1GS applications of aluminum electrolytic capacitors.
- Power supplies
- Standard and switched mode power supplies
- Industrial systems
- Uninterruptible power supplies
- Frequency converters
- Computer
- Energy storage in pulse systems
- Telecommunication
- Smoothing and filtering applications
- Computer motherboards
