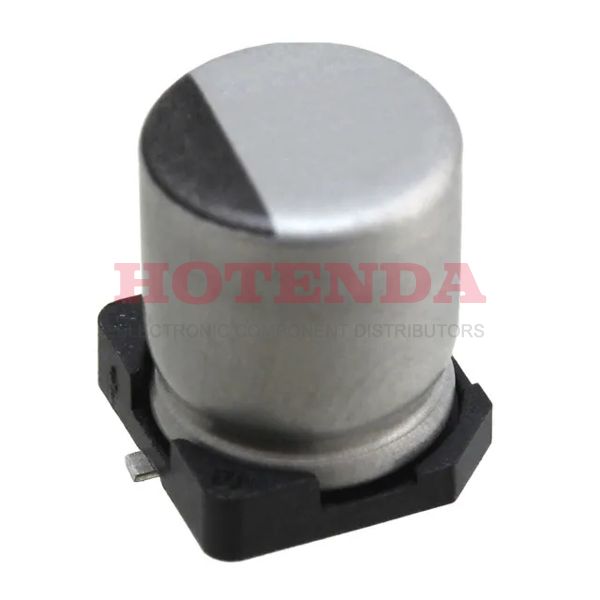

UCZ1E101MCL6GS Overview
During full charge, the ripple current is 197mA @ 100kHz.To fully perform its function, 450mOhm needs the equivalent series resistance.The ripple current at the lowest charge is 98.5mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 0.276 7.00mm is recommended.Basically, it has a dissipation factor of 0.18 %.The capacitor operates at a voltage of 25V - Rated DC.Maintaining -40°C~125°C as the operating temperature will maximize efficiency.
UCZ1E101MCL6GS Features
the ripple current is 197mA @ 100kHz.
the ripple current is 98.5mA @ 120Hz.
a dissipation factor of 0.18 %
voltage - Rated DC of 25V
an operating temperature of -40°C~125°C
UCZ1E101MCL6GS Applications
There are a lot of Nichicon UCZ1E101MCL6GS applications of aluminum electrolytic capacitors.
- Computer
- Uninterruptible power supplies
- Standard and switched mode power supplies
- Frequency converters
- Smoothing and filtering applications
- Energy storage in pulse systems
- Industrial systems
- Power supplies
- Telecommunication
- Computer motherboards
