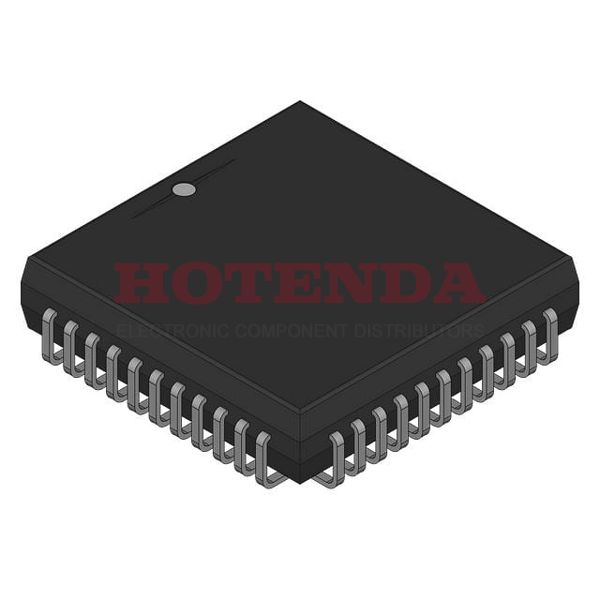

Name: TN87L51FB
Brand: Intel
SKU: TN87L51FB
Availability: InStock

new-10%

TN87L51FB

Manufacturer part number:TN87L51FB

Manufacturer:Intel

Description:Microcontroller 3V

Case Package:SOT-23

Datasheet:TN87L51FB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	YES
JESD-609 Code	e0
Number of Terminations	44
Terminal Finish	Tin/Lead (Sn/Pb)
Additional Feature	BOOLEAN PROCESSOR; ON-CIRCUIT EMULATION
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	J BEND
Supply Voltage	3V
Terminal Pitch	1.27mm
Pin Count	44
JESD-30 Code	S-PQCC-J44
Qualification Status	Not Qualified
Operating Temperature (Max)	85°C
Operating Temperature (Min)	-40°C
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3/3.3V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	2.7V
Number of I/O	32
Speed	6 MHz
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Clock Frequency	12MHz
Supply Current-Max	20.8mA
Bit Size	8
Has ADC	NO
DMA Channels	NO
PWM Channels	NO
DAC Channels	NO
Address Bus Width	16
ROM (words)	16384
On Chip Program ROM Width	8
CPU Family	8051
Boundary Scan	NO
Low Power Mode	YES
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
RAM (words)	256
RAM (bytes)	256
Number of Serial I/Os	1
Number of Timers	3
ROM Programmability	OTPROM
Number of External Interrupts	2
On Chip Data RAM Width	8
RoHS Status	Non-RoHS Compliant

TN87L51FB Product Details

TN87L51FB Overview

With 32 I/Os, it's pretty good. The IC chip fits into the MICROCONTROLLER uPs/uCs/Peripheral ICs category. There are 44 terminations on the IC chip. 8-bits are the size of the data that comes with MCU. A 3V volt supply is provided by the Microcontroller chip. In addition to that, MCU chip has NO DMA channels. There are a total of NO channels in the device. A total of 44 pins are included in the package. There are several CPUs that are embedded in the device, including the the 8051 CPU. The clock frequency is 12MHz. As an example, there is a feature called BOOLEAN PROCESSOR; ON-CIRCUIT EMULATION to name only a few. It is designed with 1 serial inputs and outputs (I/Os). As part of the part, there are 2 external interrupts that can be used. A IC chip with 3 bits has 3 bits in total.
