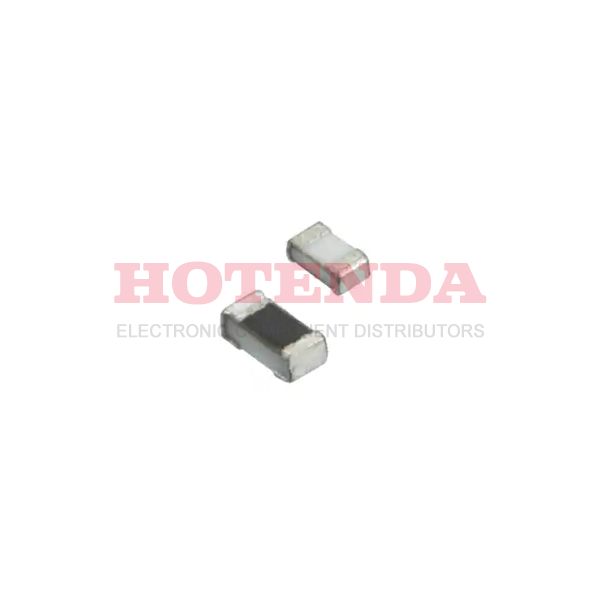

Name: RG1608P-1183-C-T5
Brand: Susumu
SKU: RG1608P-1183-C-T5
Availability: InStock

new-10%

RG1608P-1183-C-T5

Manufacturer part number:RG1608P-1183-C-T5

Manufacturer:Susumu

Description:FIXED RESISTOR SURFACE MOUNT, RG Series, Thin Film, 118kOhm, 0.1W 1/10W, ±0.25%, -55°C~155°C

Case Package:SOT-23

Datasheet:RG1608P-1183-C-T5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	0603 (1608 Metric)
Surface Mount	YES
Terminal Shape	WRAPAROUND
Mounting Feature	SURFACE MOUNT
Operating Temperature	-55°C~155°C
Packaging	Tape & Reel (TR)
Series	RG
Published	2007
Size / Dimension	0.063Lx0.031W 1.60mmx0.80mm
Tolerance	±0.25%
JESD-609 Code	e3
Feature	Anti-Sulfur, Automotive AEC-Q200
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	±25ppm/°C
Resistance	118kOhm
Terminal Finish	Matte Tin (Sn)
Composition	Thin Film
Power (Watts)	0.1W 1/10W
Voltage - Rated	75V
Additional Feature	ULTRA PRECISION
Subcategory	FIXED RESISTOR
Power Rating	62.5mW
Voltage - Rated DC	75V
Packing Method	TR
Max Power Dissipation	100mW
Construction	Chip
Resistor Type	FIXED RESISTOR
Case Code (Metric)	1608
Rated Power Dissipation (P)	0.1667W
Case Code (Imperial)	0603
Height	508μm
Height Seated (Max)	0.020 0.50mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Ratings	AEC-Q200

RG1608P-1183-C-T5 Product Details

Description: The Susumu Chip Resistor - Surface Mount RG1608P-1183-C-T5 is a surface mount resistor with a resistance of 118k ohms and a tolerance of 0.25%. It has a power rating of 1/10W and a size of 0603.

Features:
- Surface mount design
- Resistance of 118k ohms
- Tolerance of 0.25%
- Power rating of 1/10W
- Size of 0603

Applications: The Susumu Chip Resistor - Surface Mount RG1608P-1183-C-T5 is suitable for a wide range of applications, including power supplies, audio amplifiers, and motor control circuits. It can also be used in automotive, medical, and industrial applications.
