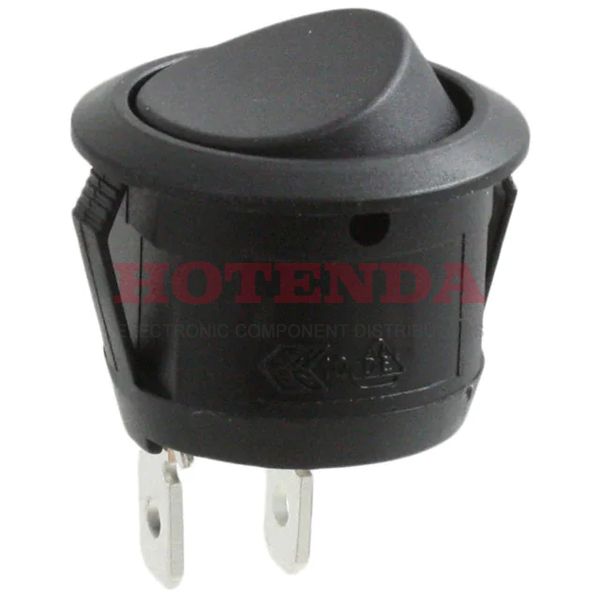

Name: R13112ABB
Brand: Bulgin
SKU: R13112ABB
Price: 2.32000 USD
Availability: InStock

new-10%

R13112ABB

Manufacturer part number:R13112ABB

Manufacturer:Bulgin

Description:SWITCH ROCKER SPST 10A 125V

Case Package:SOT-23

Datasheet:R13112ABB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	24 Weeks
Mounting Type	Panel Mount, Snap-In
Surface Mount	NO
Packaging	Bulk
Series	R13
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Current Rating (Amps)	10A AC
Termination Style	Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC	125V
Actuator Type	Round
Circuit	SPST
Switch Function	On-Off
Panel Cutout Dimensions	Circular - 20.20mm Dia
Contact Resistance	0.1mOhm
Insulation Resistance	20000000Ohm
Color - Actuator/Cap	Black
Electrical Life	50000 Cycle(s)
Switch Type	ROCKER SWITCH
Contact Current(AC)-Max	6A
Contact (AC) Max Rating R Load	[email protected]
Contact Voltage(AC)-Max	250V
Actuator Marking	No Marking
Body Height	14.5034mm
Length - Termination	0.319 inch
Actuator Length	0.217 inch
RoHS Status	ROHS3 Compliant

R13112ABB Product Details

The Bulgin Rocker Switch R13112ABB is a single pole single throw (SPST) switch designed for use in a variety of applications. It is rated for 10A at 125V and is suitable for use in both AC and DC circuits. It features a black plastic body with a red rocker actuator and two 6.3mm quick connect terminals. The switch is designed to be panel mounted and is IP67 rated for dust and water ingress protection.

Features of the Bulgin Rocker Switch R13112ABB include:

• 10A 125V rating
• Suitable for AC and DC circuits
• Black plastic body with red rocker actuator
• Two 6.3mm quick connect terminals
• Panel mountable
• IP67 rated for dust and water ingress protection

Applications for the Bulgin Rocker Switch R13112ABB include:

• Industrial control systems
• Automotive and marine applications
• Home appliances
• Lighting control systems
• Audio/visual equipment
