QYX2A562KTP

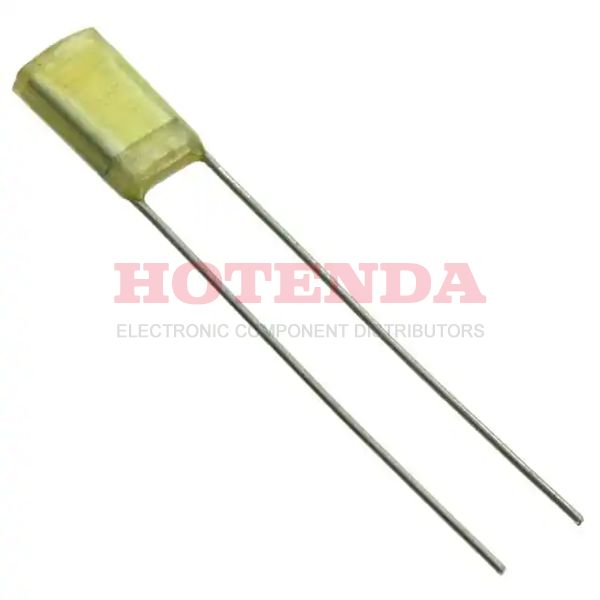

  • QYX2A562KTP - QYX 5600pF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester Through Hole
  • QYX2A562KTP - QYX 5600pF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester Through Hole

QYX2A562KTP

QYX2A562KTP

Nichicon

QYX 5600pF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester Through Hole

SOT-23

QYX2A562KTP Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 17 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester
Operating Temperature-40°C~85°C
PackagingBulk
Published 2009
Series QYX
Size / Dimension 0.236Lx0.110W 6.00mmx2.80mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Type General Purpose
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Voltage - Rated 100V
HTS Code8532.22.00
Capacitance 5600pF
Voltage - Rated DC 100V
Terminal Pitch7.5mm
Reach Compliance Code not_compliant
Lead Pitch 5.0038mm
Lead Spacing0.197 5.00mm
Size Code 6537
Height Seated (Max) 0.472 12.00mm
Length 16.5mm
Width 9.5mm
RoHS StatusROHS3 Compliant
In-Stock:27272 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.297613$0.297613
10$0.280767$2.80767
100$0.264874$26.4874
500$0.249882$124.941
1000$0.235737$235.737

QYX2A562KTP Product Details

QYX2A562KTP Overview


A 0.197 5.00mm lead spacing is used in this electrical device.Temperatures of -40°C~85°C allow the device to operate.

QYX2A562KTP Features



QYX2A562KTP Applications


There are a lot of Nichicon QYX2A562KTP applications of film capacitors.

  • Switch-mode power supplies
  • IGBT
  • Filtering
  • Electronic ballasts
  • VCO's
  • Battery management system
  • Lighting
  • Global positioning systems
  • Mobile communications
  • Industrial and automotive inverters
