QXP2J103KRPT

  • QXP2J103KRPT - QXP 10000pF Film Capacitor ±10% Radial PC Pins 630V-DC 200V-AC Polypropylene (PP), Metallized Through Hole
  • QXP2J103KRPT - QXP 10000pF Film Capacitor ±10% Radial PC Pins 630V-DC 200V-AC Polypropylene (PP), Metallized Through Hole

QXP2J103KRPT

QXP2J103KRPT

Nichicon

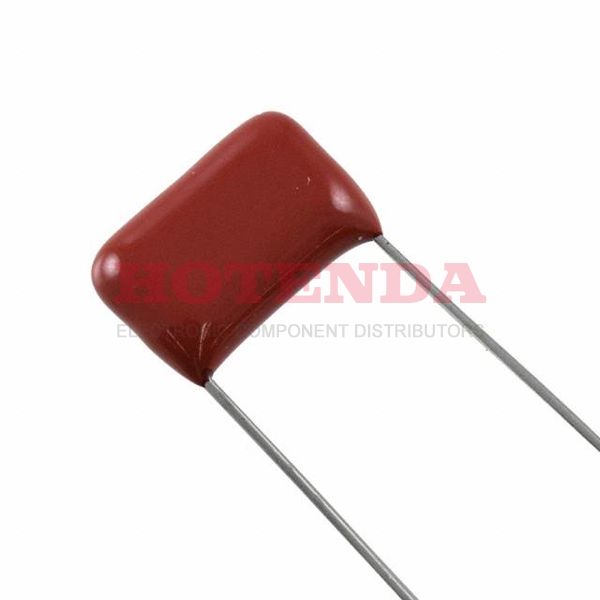

QXP 10000pF Film Capacitor ±10% Radial PC Pins 630V-DC 200V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

QXP2J103KRPT Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 18 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2009
Series QXP
Size / Dimension 0.630Lx0.217W 16.00mmx5.50mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications High Frequency, Switching
Additional FeatureRATED AC VOLTAGE (V): 200
HTS Code8532.22.00
Capacitance 10000pF
Voltage - Rated DC 630V
Terminal Pitch12.5mm
Voltage - Rated AC 200V
Lead Pitch 12.4968mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.492 12.50mm
Lead Diameter 600 μm
Size Code 6322
Height 10.3mm
Height Seated (Max) 0.437 11.10mm
Length 16mm
Width 5.5mm
RoHS StatusROHS3 Compliant
In-Stock:5316 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.942000$0.942
10$0.888679$8.88679
100$0.838377$83.8377
500$0.790921$395.4605
1000$0.746152$746.152

QXP2J103KRPT Product Details

QXP2J103KRPT Overview


Electrical devices such as this have a lead spacing of 0.492 12.50mm.-40°C~105°C is the maximum temperature at which the device can operate.

QXP2J103KRPT Features



QXP2J103KRPT Applications


There are a lot of Nichicon QXP2J103KRPT applications of film capacitors.

  • Compact fluorescent lamps (CFL)
  • Snubbering
  • Electronic ballasts
  • VCO's
  • Satellite TV
  • Filters
  • RFI for automotive
  • Filtering
  • Battery management system
  • Switch-mode power supplies
