QXK2J224KTP

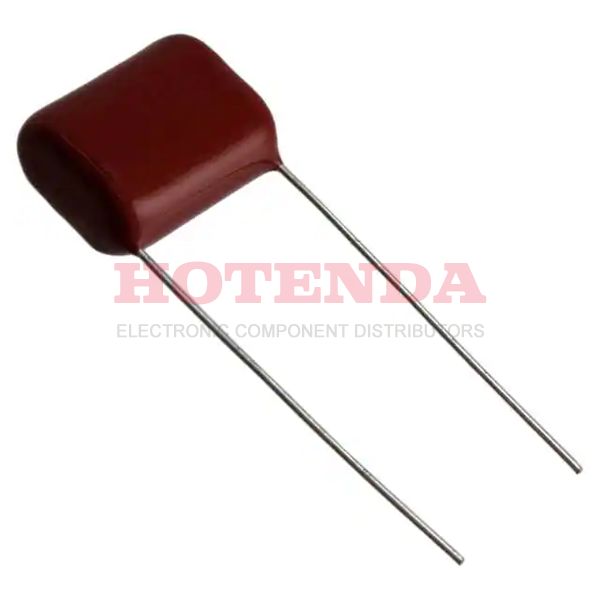

  • QXK2J224KTP - QXK 0.22μF Film Capacitor ±10% Radial PC Pins 630V-DC 250V-AC Polyester, Metallized Radial, Through Hole
  • QXK2J224KTP - QXK 0.22μF Film Capacitor ±10% Radial PC Pins 630V-DC 250V-AC Polyester, Metallized Radial, Through Hole

QXK2J224KTP

QXK2J224KTP

Nichicon

QXK 0.22μF Film Capacitor ±10% Radial PC Pins 630V-DC 250V-AC Polyester, Metallized Radial, Through Hole

SOT-23

QXK2J224KTP Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 18 Weeks
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2009
Series QXK
Size / Dimension 0.728Lx0.378W 18.50mmx9.60mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Type General Purpose
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Capacitance 0.22μF
Voltage - Rated DC 630V
Depth 9.6mm
Voltage - Rated AC 250V
Lead Pitch 15mm
Dielectric PET
Lead Spacing0.591 15.00mm
Lead Diameter 600 μm
Size Code 7338
Voltage 630V
Dissipation Factor0.8 %
Lead/Base Style Straight
Height 15.3mm
Height Seated (Max) 0.642 16.30mm
Length 18.5mm
RoHS StatusROHS3 Compliant
In-Stock:4187 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.272483$1.272483
10$1.200455$12.00455
100$1.132505$113.2505
500$1.068401$534.2005
1000$1.007926$1007.926

QXK2J224KTP Product Details

QXK2J224KTP Overview


Electrical devices have 0.591 15.00mm lead spacing.In a temperature range of -40°C~105°C, the device can be operated.

QXK2J224KTP Features



QXK2J224KTP Applications


There are a lot of Nichicon QXK2J224KTP applications of film capacitors.

  • Switch-mode power supplies
  • Coupling, decoupling
  • Filters
  • RFI for automotive
  • TV and monitor sets
  • Test and measuring equipment
  • Mobile communications
  • Industrial and automotive inverters
  • RF Modules
  • Electronic ballasts
