QXK2J103KTP

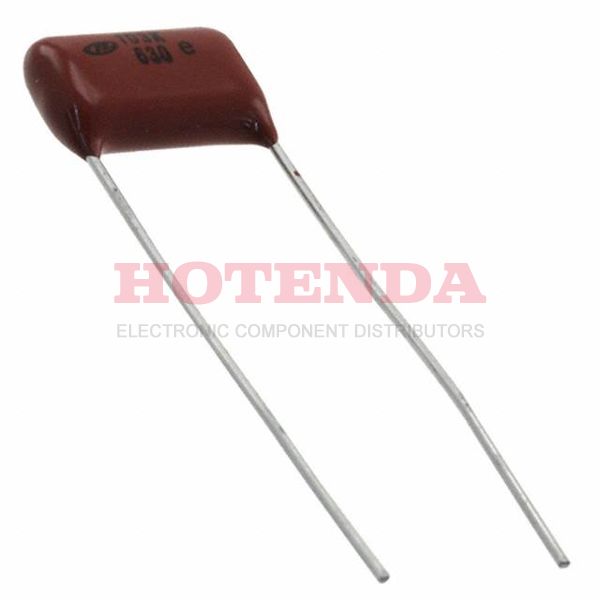

  • QXK2J103KTP - QXK 10000pF Film Capacitor ±10% Radial PC Pins 630V-DC 250V-AC Polyester, Metallized PCB, Radial, Through Hole
  • QXK2J103KTP - QXK 10000pF Film Capacitor ±10% Radial PC Pins 630V-DC 250V-AC Polyester, Metallized PCB, Radial, Through Hole

QXK2J103KTP

QXK2J103KTP

Nichicon

QXK 10000pF Film Capacitor ±10% Radial PC Pins 630V-DC 250V-AC Polyester, Metallized PCB, Radial, Through Hole

SOT-23

QXK2J103KTP Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 18 Weeks
Mount PCB, Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2009
Series QXK
Size / Dimension 0.531Lx0.173W 13.50mmx4.40mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Type General Purpose
Terminal Finish Matte Tin (Sn)
Applications General Purpose
HTS Code8532.22.00
Capacitance 10000pF
Voltage - Rated DC 630V
Depth 4.4mm
Voltage - Rated AC 250V
Lead Pitch 10mm
Dielectric PET
Lead Spacing0.394 10.00mm
Lead Diameter 600 μm
Size Code 5317
Voltage 630V
Dissipation Factor0.8 %
Height 9mm
Height Seated (Max) 0.413 10.50mm
Length 13.5mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:8868 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.966751$0.966751
10$0.912029$9.12029
100$0.860406$86.0406
500$0.811703$405.8515
1000$0.765758$765.758

QXK2J103KTP Product Details

QXK2J103KTP Overview


This electrical device has a 0.394 10.00mm lead spacing.Temperatures as low as -40°C~105°C are suitable for the device.

QXK2J103KTP Features



QXK2J103KTP Applications


There are a lot of Nichicon QXK2J103KTP applications of film capacitors.

  • Mobile communications
  • Filtering
  • Industrial and automotive inverters
  • Snubbering
  • Matching networks
  • Blocking
  • Filters
  • Battery management system
  • VCO's
  • RFI for automotive
