Name: EZ80F91NA050EG
Brand: Zilog
SKU: EZ80F91NA050EG
Availability: InStock

new-10%

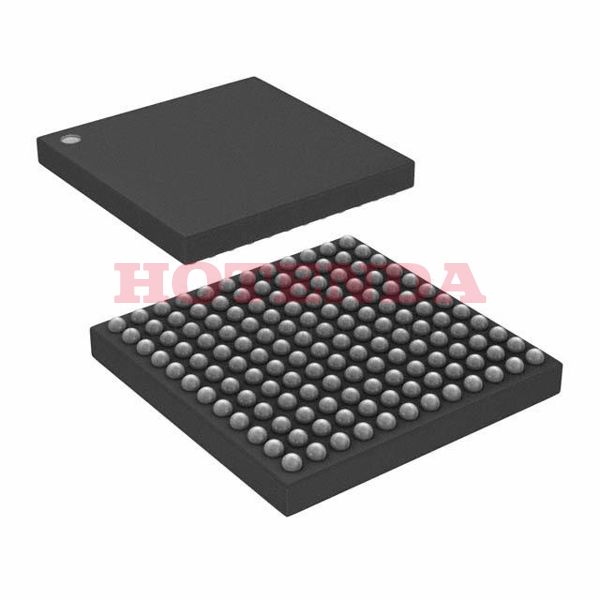

EZ80F91NA050EG

Manufacturer part number:EZ80F91NA050EG

Manufacturer:Zilog

Description:256KB 256K x 8 FLASH eZ80 8-Bit Microcontroller eZ80® Acclaim!® Series EZ80F91 144 Pin 50MHz 3.3V 144-LBGA

Case Package:SOT-23

Datasheet:EZ80F91NA050EG Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Mounting Type	Surface Mount
Package / Case	144-LBGA
Surface Mount	YES
Number of Pins	144
Operating Temperature	-40°C~105°C TA
Packaging	Tray
Series	eZ80® Acclaim!®
Published	2008
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	144
ECCN Code	3A001.A.3
Terminal Finish	MATTE TIN
Max Power Dissipation	830mW
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	1mm
Frequency	50MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	EZ80F91
Pin Count	144
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3V
Supply Voltage-Min (Vsup)	3V
Interface	Ethernet, I2C, IrDA, SPI, UART, USART
Memory Size	256kB
Oscillator Type	Internal
Number of I/O	32
RAM Size	16K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	eZ80
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	256KB 256K x 8
Connectivity	Ethernet, I2C, IrDA, SPI, UART/USART
Supply Current-Max	190mA
Bit Size	8
Watchdog Timer	Yes
Access Time	50 μs
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	4
Address Bus Width	24
Core Architecture	Z8
CPU Family	Z80
Length	13mm
Height Seated (Max)	1.5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

EZ80F91NA050EG Product Details

EZ80F91NA050EG Overview

This Microcontroller comes in a 144-LBGA package. This Microcontroller has 32 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~105°C TA Operating Temperature. Microcontroller runs in eZ80® Acclaim!® Series. The size of the program memory of Microcontroller is 256KB 256K x 8. MCU is powered by eZ80 Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 144 terminals. Microcontroller comes with 8 bit size. The component always operates in 3.3V supply voltage. MCU chip has NO DMA channels. The part owns 256kB memory size. You can find alternatives through the base part number EZ80F91. MCU's frequency is 50MHz. The device works in YES PWM channels. The pin number of the component remains 144. It has 4 timers/counters. It counts 144 pins. The device is embedded with Z80 CPU family. It has a Z8 core architecture integrated into it.
