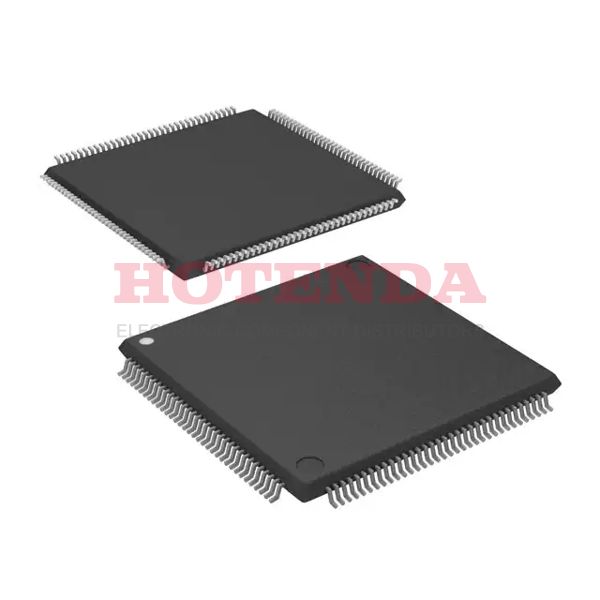

EPF10K20TC144-4N Overview
The package that contains this software is called 144-LQFP. An FPGA of this type is made up of LOADABLE PLD gates. This device features 102 I/Os in order to transfer data in a more efficient manner. A fundamental building block is made up of 1152 logic elements/cells. An electrical supply voltage of 5V powers it. An FPGA part from the Field Programmable Gate Arrays family. Surface Mount-connectors can be used to attach this FPGA module to the development board. The supply voltage of the device is 4.75V~5.25V , at which it runs. An FPGA belonging to the FLEX-10K? series is referred to as an FPGA. When operating the machine, it is important to keep the temperature within 0°C~70°C TA range. The device has 102 outputs that are integrated into it. There is an FPGA model contained in Tray in order to conserve space. There are a total of 144 terminations. Fpga chips is important to note that this device has a RAM capacFpga chipsy of 12288 bFpga chipss. In order to find related parts, use the part number EPF10K20 as a base. A total of 144 LABs/CLBs are included in this FPGA. It is powered by a 3.3/5V battery, which can be purchased separately. A basic building block for this type of building block consists of 63000 gates. It is possible to detect the status of an input signal by using 4 dedicated inputs provided on the output board.
EPF10K20TC144-4N Features
102 I/Os
Up to 12288 RAM bits
EPF10K20TC144-4N Applications
There are a lot of Intel EPF10K20TC144-4N FPGAs applications.
- Device controllers
- Medical ultrasounds
- Software-defined radios
- Filtering and communication encoding
- Development Boards and Shields for Microcontrollers
- Cryptography
- Aircraft navigation
- Aerospace and Defense
- Image processing
- Wired Communications
