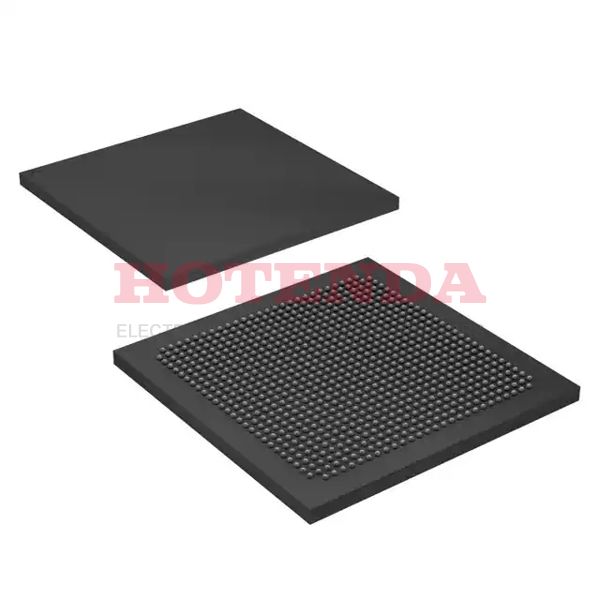

EP4SGX360FH29C2XN Overview
As part of the 780-BBGA, FCBGA package, it is included. In this kind of FPGA, FIELD PROGRAMMABLE GATE ARRAY is used. The I/Os are designed to facilitate a more coherent transfer of data. A fundamental building block consists of 353600 logic elements/cells. It is powered from a supply voltage of 0.9V. Part of the Field Programmable Gate Arrays family, this FPGA part is a programmable gate array. Surface Mount-connectors can be used to attach this FPGA module to the development board. Fpga chips operates at a voltage of 0.87V~0.93V and uses a battery to supply power. It is a type of FPGA that belongs to the Stratix? IV GX series of FPGAs. Fpga chips is important to maintain the operating temperature wFpga chipshin the range of 0°C~85°C TJ when operating the machine. There are 289 outputs incorporated in this device. Unlike other FPGA models, this one is contained in Tray for the sake of space saving. In total, the terminations of this piece are 780. Having a RAM bit size of 23105536 means that this device will offer you a lot of memory. Parts related to this part can be found using its base part number EP4SGX360. An array of 14144 LABs/CLBs is built into the FPGA. An external power supply of 0.91.2/31.52.5V is required to power the device. It usually uses a crystal oscillating at a frequency of 800MHz in order to do its work.
EP4SGX360FH29C2XN Features
289 I/Os
Up to 23105536 RAM bits
EP4SGX360FH29C2XN Applications
There are a lot of Intel EP4SGX360FH29C2XN FPGAs applications.
- Audio
- Computer hardware emulation
- Consumer Electronics
- Software-defined radio
- DO-254
- Medical Electronics
- Automotive driver's assistance
- Medical imaging
- Device controllers
- Wireless Communications
