EP4CE55F23I7 Overview

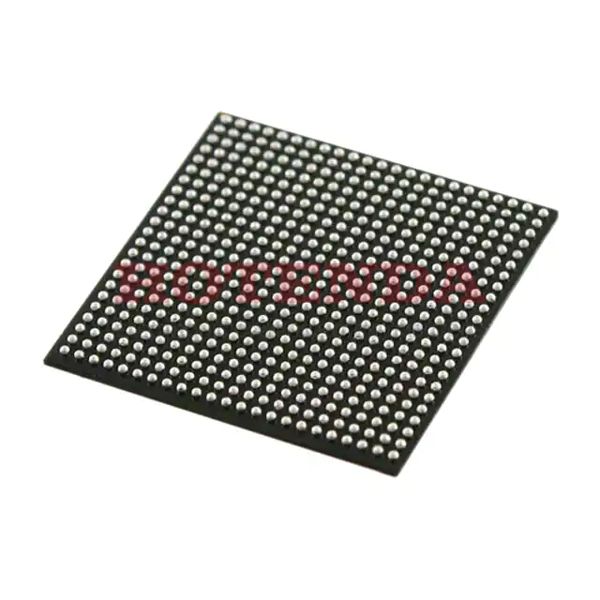

There are two packages that contain fpga chips: 484-BGA package and X package. The FIELD PROGRAMMABLE GATE ARRAY-series of FPGAs are composed of this type. This device features 324 I/Os in order to transfer data in a more efficient manner. There are 55856 logic elements/cells to form a fundamental building block. Fpga chips is powered from a supply voltage of 1.2V. This FPGA part belongs to the family of Field Programmable Gate Arrays. By attaching the Surface Mount connector, you can use this FPGA module with your development board. In order for it to operate, the supply voltage must be 1.15V~1.25V . There are many types of FPGAs in the Cyclone? IV E series, this is one of them. When operating the machine, it is important to keep the temperature within -40°C~100°C TJ range. This device is equipped with 327 separate outputs, which makes it a very versatile device. In order to save space, this FPGA model has been contained in Tray. In total, there are a total of 484 terminations on fpga chips. This device is equipped with 2396160 RAM bits in terms of its RAM si2396160e. EP4CE55 is the base part number that can be used to identify related parts. 3491 LABs and CLBs are built into this FPGA. There is a 1.21.2/3.32.5V power supply that is required to operate it. Typically, it uses a crystal oscillating at 472.5MHz in order to operate.
EP4CE55F23I7 Features
324 I/Os
Up to 2396160 RAM bits
EP4CE55F23I7 Applications
There are a lot of Intel EP4CE55F23I7 FPGAs applications.
- Distributed Monetary Systems
- Wired Communications
- High Performance Computing
- Audio
- Data Mining
- Embedded Vision
- ASIC prototyping
- Medical Applications
- DO-254
- Automotive Applications
