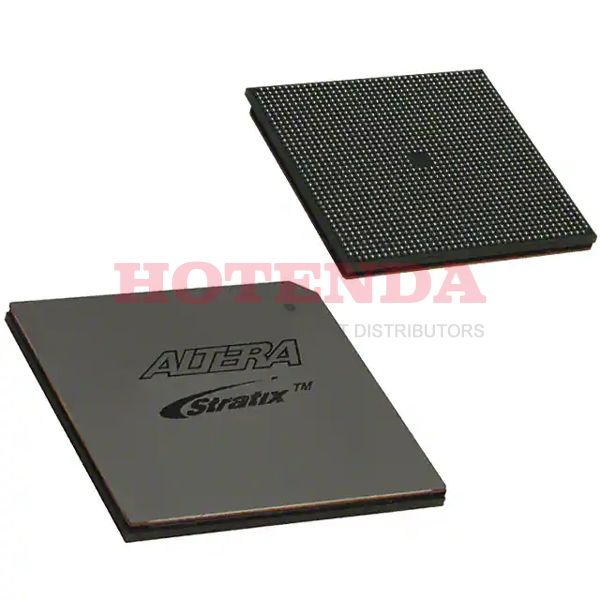

EP2SGX130GF40C4NES Overview
As part of the 1508-BBGA, FCBGA package, it is included. In this kind of FPGA, FIELD PROGRAMMABLE GATE ARRAY is used. Having 734 I/Os makes data transfers more coherent. A fundamental building block consists of 132540 logic elements/cells. Power is provided by a 1.2V-volt supply. An attachment Surface Mount allows the FPGA module to be attached to the development board. There is a 1.15V~1.25V-volt supply voltage required for the device to operate. An FPGA belonging to the Stratix? II GX series is referred to as an FPGA. In order to ensure a safe and efficient operation, it is important to maintain a temperature within 0°C~85°C TJ at all times. There is an FPGA model contained in Tray in order to conserve space. In total, there are a total of 40 terminations on fpga chips. Fpga chips is important to note that this device has a RAM capacFpga chipsy of 6747840 bFpga chipss. In order to find related parts, use the part number EP2SGX130 as a base. An array of 6627 LABs/CLBs is built into the FPGA. CLBs are the building blocks of its architecture.
EP2SGX130GF40C4NES Features
734 I/Os
Up to 6747840 RAM bits
EP2SGX130GF40C4NES Applications
There are a lot of Intel EP2SGX130GF40C4NES FPGAs applications.
- Telecommunication
- Aerospace and Defense
- Device controllers
- Digital signal processing
- ADAS
- High Performance Computing
- Ecosystem
- Automotive driver's assistance
- Development Boards and Shields for Microcontrollers
- Automotive
