EP2AGX95DF25C5 Overview

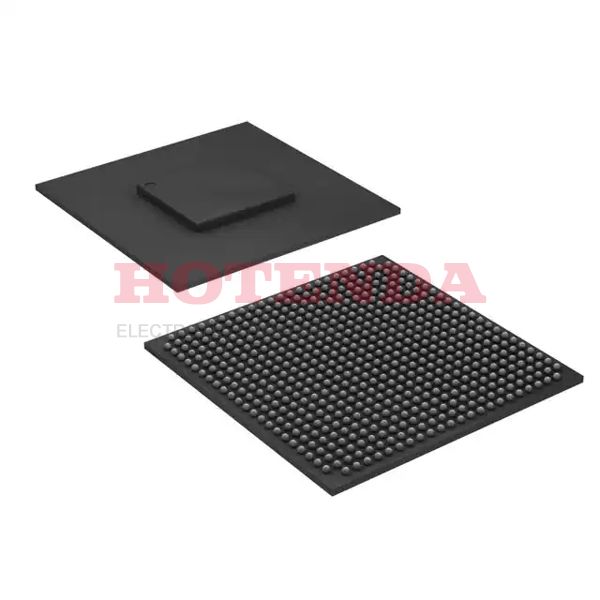

There are two packages that contain fpga chips: 572-BGA, FCBGA package and X package. There are FIELD PROGRAMMABLE GATE ARRAY transistors in this type of FPGA. The I/Os are designed to facilitate a more coherent transfer of data. There are 89178 logic elements/cells to form a fundamental building block. There is a Field Programmable Gate Arrays family component in this FPGA part. An FPGA module can be attached to a development board with a Surface Mount-pin. Powered by a 0.87V~0.93V supply voltage, fpga chips is able to operate at high speeds. As part of the Arria II GX series of FPGAs, it is a type of FPGA. Fpga chips is necessary to keep the operating temperature wFpga chipshin 0°C~85°C TJ when the device is operating. A total of 260 outputs are incorporated into this device. This FPGA model is contained in Tray for space saving. Total terminations are 572. This device has 6839296 RAM bits, which is the number of RAM bits that this device offers. In order to find related parts, you can use its base part number EP2AGX95. This FPGA is built as an array of 3747 LABs/CLBs. Power is supplied to the device by a 0.91.2/3.31.52.5V battery.
EP2AGX95DF25C5 Features
260 I/Os
Up to 6839296 RAM bits
EP2AGX95DF25C5 Applications
There are a lot of Intel EP2AGX95DF25C5 FPGAs applications.
- Enterprise networking
- Automotive Applications
- Automation
- Software-defined radios
- Aircraft navigation
- Military Temperature
- Cryptography
- DO-254
- Data center search engines
- Space Applications
