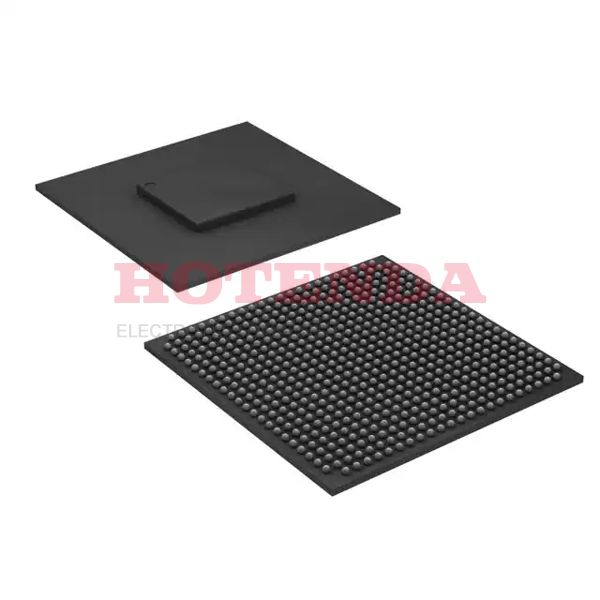

EP2AGX65DF25C4G Overview
The package that contains this software is called 572-BGA, FCBGA. There are FIELD PROGRAMMABLE GATE ARRAY transistors in this type of FPGA. A total of 252 I/Os allow data to be transferred in a more coherent manner. A fundamental building block is made up of 60214 logic elements/cells. Fpga chips is powered from a supply voltage of 0.9V. With a Surface Mount connector, this FPGA module can be attached to the development board. With a supply voltage of 0.87V~0.93V, this device operates with ease. As part of the Arria II GX series of FPGAs, it is a type of FPGA. Fpga chips is necessary to keep the operating temperature wFpga chipshin 0°C~85°C TJ when the device is operating. A model of this FPGA is contained in Tray for the purpose of saving space. In total, it has a total of 572 terminations. This device has 5371904 RAM bits, which is the number of RAM bits that this device offers. 2530 LABs and CLBs are built into this FPGA.
EP2AGX65DF25C4G Features
252 I/Os
Up to 5371904 RAM bits
EP2AGX65DF25C4G Applications
There are a lot of Intel EP2AGX65DF25C4G FPGAs applications.
- Image processing
- Electronic Warfare
- Automotive Applications
- High Performance Computing
- Automotive advanced driver assistance systems (ADAS)
- Camera time adjustments
- Medical Electronics
- Radar and Sensors
- OpenCL
- Scientific Instruments
