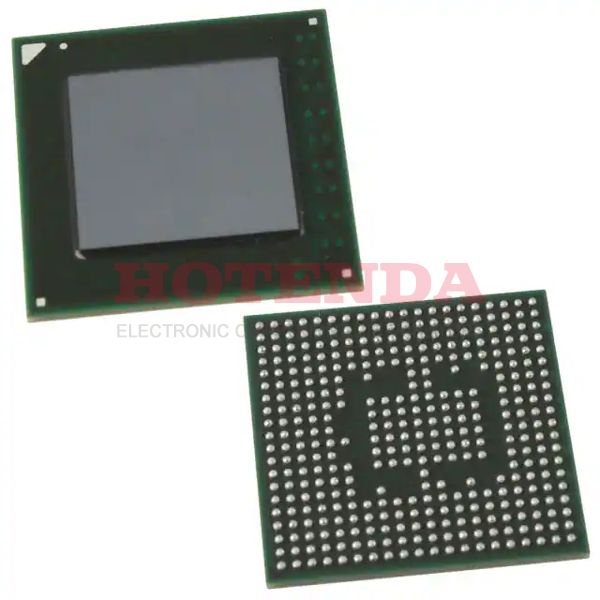

EP2AGX65CU17I3N Overview
There are two packages that contain fpga chips: 358-LFBGA, FCBGA package and X package. An FPGA of this type is made up of FIELD PROGRAMMABLE GATE ARRAY gates. The I/Os are designed to facilitate a more coherent transfer of data. To form a fundamental building block, there are 60214 logic elements/cells. Using a Surface Mount connector, you can mount this FPGA module on the development board. In order to operate it, it requires a voltage supply of 0.87V~0.93V . FPGAs belonging to the Arria II GX series are a type of FPGA that belong to the Arria II GX series of FPGAs. Fpga chips is important to maintain the operating temperature wFpga chipshin the range of -40°C~100°C TJ when operating the machine. As a space-saving measure, this FPGA model is contained within Tray. This device is equipped with 5371904 RAM bits in terms of its RAM si5371904e. If you are looking for related parts, you can use the base part number EP2AGX65 as a starting point. This FPGA is built as an array of 2530 LABs/CLBs.
EP2AGX65CU17I3N Features
156 I/Os
Up to 5371904 RAM bits
EP2AGX65CU17I3N Applications
There are a lot of Intel EP2AGX65CU17I3N FPGAs applications.
- High Performance Computing
- Aircraft navigation
- Automation
- Broadcast
- Wired Communications
- Automotive
- Scientific Instruments
- Software-defined radios
- Filtering and communication encoding
- Enterprise networking
