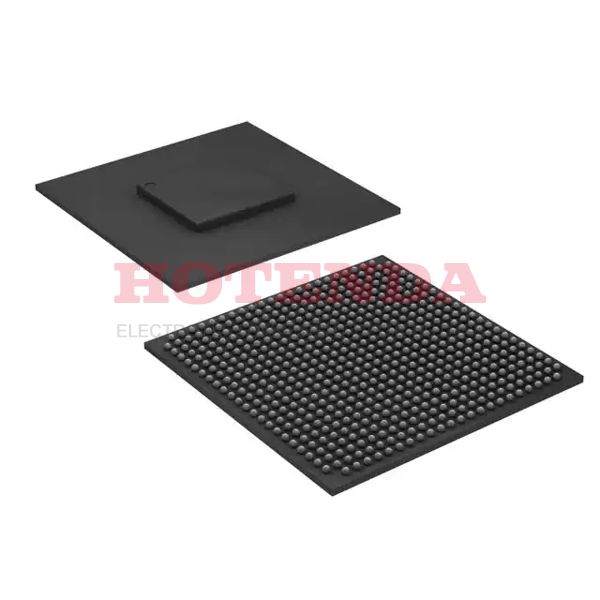

EP2AGX45DF25I3N Overview
The package that contains this software is called 572-BGA, FCBGA. In this kind of FPGA, FIELD PROGRAMMABLE GATE ARRAY is used. A total of 252 I/Os allow data to be transferred in a more coherent manner. There are 42959 logic elements/cells to form a fundamental building block. In order to operate fpga chips, a voltage supply of 0.9V volts is required. Using a Surface Mount connector, you can mount this FPGA module on the development board. Powered by a 0.87V~0.93V supply voltage, fpga chips is able to operate at high speeds. As part of the Arria II GX series of FPGAs, it is a type of FPGA. While operating, the operating temperature should be kept within a range of -40°C~100°C TJ. It is for space saving reasons that this FPGA model is contained in Tray. 572 terminations are present in total. Having a RAM bit size of 3517440 means that this device will offer you a lot of memory. Parts related to this part can be found using its base part number EP2AGX45. A total of 1805 LABs/CLBs make up this FPGA array. Typically, it uses a crystal oscillating at 500MHz in order to operate.
EP2AGX45DF25I3N Features
252 I/Os
Up to 3517440 RAM bits
EP2AGX45DF25I3N Applications
There are a lot of Intel EP2AGX45DF25I3N FPGAs applications.
- Medical imaging
- Wireless Communications
- Voice recognition
- Enterprise networking
- Development Boards and Shields for Microcontrollers
- Aerospace and Defense
- Embedded Vision
- Industrial Ethernet
- Automotive Applications
- Distributed Monetary Systems
