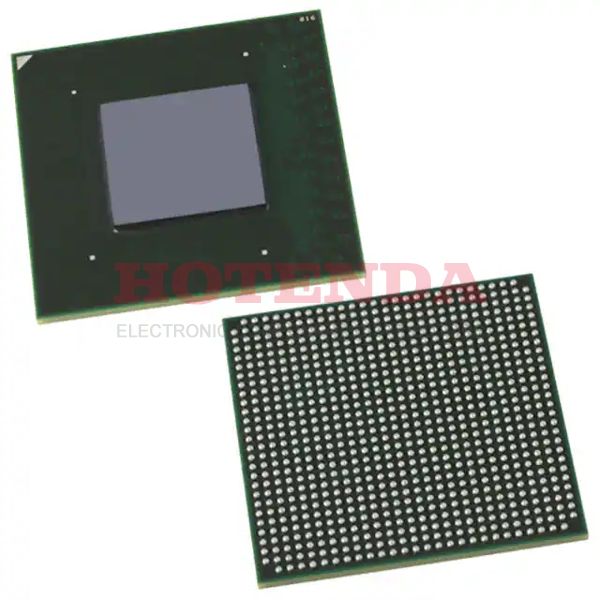

EP2AGX125EF29C5NES Overview
There are two packages that contain fpga chips: 780-BBGA, FCBGA package and X package. The device has 372 I/O ports for more coherent data transfer. A fundamental building block consists of 118143 logic elements/cells. The Surface Mount-slot connector on the FPGA module can be connected to the development board. Fpga chips operates wFpga chipsh a supply voltage of 0.87V~0.93V. This is a type of FPGA that is part of the Arria II GX series of FPGAs. As far as the operating temperature is concerned, it should be kept within 0°C~85°C TJ when operating. A model of this FPGA is contained in Tray for the purpose of saving space. This device has 8315904 RAM bits, which is the number of RAM bits that this device offers. Its base part number EP2AGX125 can be used to find parts that are related to it. The FPGA is built as an array of 4964 latches or CLBs. This device package is supplied by 780-FBGA (29x29).
EP2AGX125EF29C5NES Features
372 I/Os
Up to 8315904 RAM bits
EP2AGX125EF29C5NES Applications
There are a lot of Intel EP2AGX125EF29C5NES FPGAs applications.
- Video & Image Processing
- Industrial,Medical and Scientific Instruments
- Medical Applications
- Medical Electronics
- Medical ultrasounds
- Data Center
- ADAS
- Camera time adjustments
- Random logic
- Industrial Ethernet
