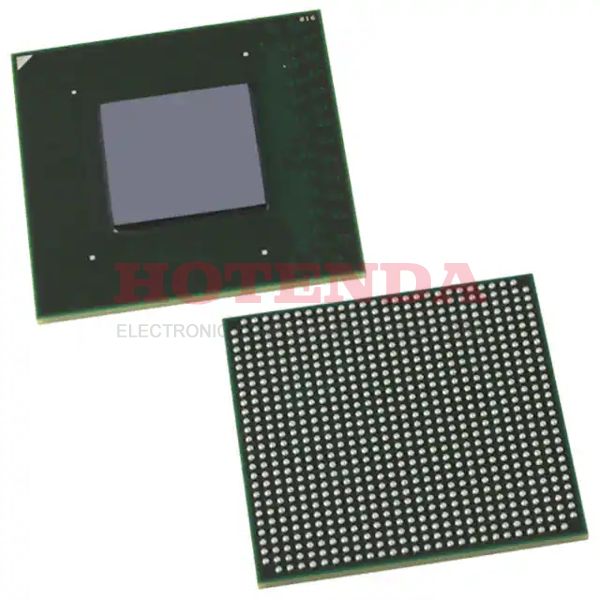

EP2AGX125EF29C5N Overview
Fpga chips is supplied in the 780-BBGA, FCBGA package. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. The I/Os are designed to facilitate a more coherent transfer of data. To form a fundamental building block, there are 118143 logic elements/cells. It is powered from a supply voltage of 0.9V. This FPGA part belongs to the family of Field Programmable Gate Arrays. Surface Mount-connectors can be used to attach this FPGA module to the development board. A supply voltage of 0.87V~0.93V is needed in order for fpga chips to operate. It is a type of FPGA that belongs to the Arria II GX series of FPGAs. When operating the machine, it is important to keep the temperature within 0°C~85°C TJ range. In order to make this device as versatile as possible, there are 372 different outputs included. This FPGA model is contained in Tray for space saving. In total, the terminations of this piece are 780. There are 8315904 RAM bits that are available with this device. In order to find related parts, use the part number EP2AGX125 as a base. This FPGA is built as an array of 4964 LABs/CLBs. An external power supply of 0.91.2/3.31.52.5V is required to power the device. Fpga semiconductor typically uses a crystal oscillating at 500MHz.
EP2AGX125EF29C5N Features
372 I/Os
Up to 8315904 RAM bits
EP2AGX125EF29C5N Applications
There are a lot of Intel EP2AGX125EF29C5N FPGAs applications.
- Cryptography
- Embedded Vision
- High Performance Computing
- Audio
- Medical ultrasounds
- Consumer Electronics
- Wired Communications
- Automotive Applications
- Secure Communication
- Development Boards and Shields for Microcontrollers
