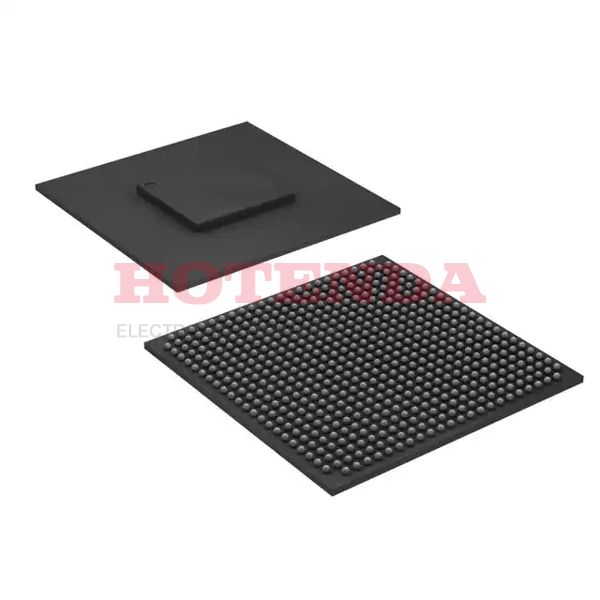

EP2AGX125DF25C6 Overview
There are two packages that contain fpga chips: 572-BGA, FCBGA package and X package. FIELD PROGRAMMABLE GATE ARRAY is the component of this type of FPGA. Its 260 I/Os help it transfer data more efficiently. A fundamental building block consists of 118143 logic elements/cells. There is a Field Programmable Gate Arrays family component in this FPGA part. Using a Surface Mount connector, you can mount this FPGA module on the development board. This device is powered by a 0.87V~0.93V battery. It is a type of FPGA that belongs to the Arria II GX series of FPGAs. Operating temperatures should be maintained within the 0°C~85°C TJ range at all times when the unit is in use. A total of 260 outputs are incorporated into this device. Unlike other FPGA models, this one is contained in Tray for the sake of space saving. 572 terminations are present in total. A device like this one offers 8315904 RAM bits, which is a considerable amount of memory. In order to find related parts, use the part number EP2AGX125 as a base. A total of 4964 LABs/CLBs make up this FPGA array. In order for fpga electronics to work, fpga electronics requires a 0.91.2/3.31.52.5V power supply.
EP2AGX125DF25C6 Features
260 I/Os
Up to 8315904 RAM bits
EP2AGX125DF25C6 Applications
There are a lot of Intel EP2AGX125DF25C6 FPGAs applications.
- Distributed Monetary Systems
- Industrial IoT
- Software-defined radios
- Wired Communications
- Security systems
- Server Applications
- Medical Electronics
- Random logic
- Camera time adjustments
- Scientific Instruments
