EP2AGX125DF25C5NES Overview

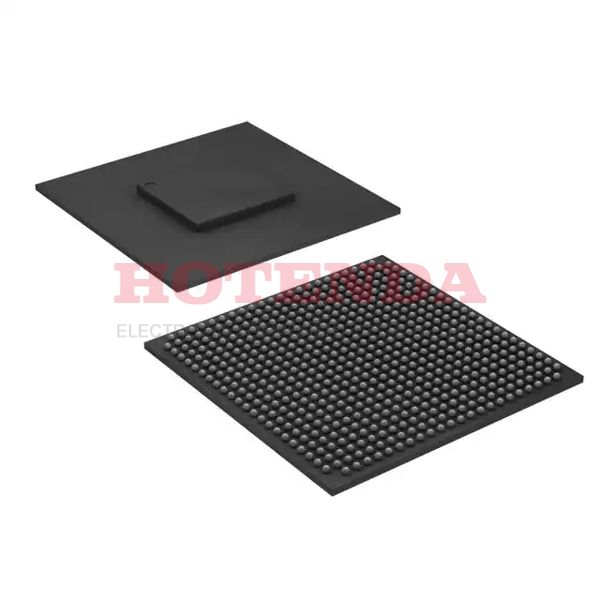

The package that contains this software is called 572-BGA, FCBGA. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. A total of 260 I/Os are programmed to ensure a more coherent data transfer. Logic blocks consist of 118143 logic elements/cells. The supply voltage is 0.9V volts. With a Surface Mount connector, this FPGA module can be attached to the development board. Fpga chips operates wFpga chipsh a supply voltage of 0.87V~0.93V. FPGAs belonging to the Arria II GX series are a type of FPGA that belong to the Arria II GX series of FPGAs. Fpga chips is recommended that the operating temperature be kept wFpga chipshin the range 0°C~85°C TJ while the machine is operating. Using the Tray layout, this FPGA model can be contained in a very small amount of space. Total terminations are 572. This device has 8315904 RAM bits, which is the number of RAM bits that this device offers. Related parts can be found by using its base part number EP2AGX125. Fpga electronics contains 4964 LABs/CLBs in an array. Usually, fpga semiconductor uses a 500MHz crystal. There are 124100 CLBs that make up the architecture of the system.
EP2AGX125DF25C5NES Features
260 I/Os
Up to 8315904 RAM bits
EP2AGX125DF25C5NES Applications
There are a lot of Intel EP2AGX125DF25C5NES FPGAs applications.
- Space Applications
- Aerospace and Defense
- Development Boards and Shields for Microcontrollers
- Scientific Instruments
- Military DSP
- Enterprise networking
- Software-defined radio
- Wired Communications
- Data Mining
- Medical ultrasounds
