EP1SGX10DF672C7N Overview

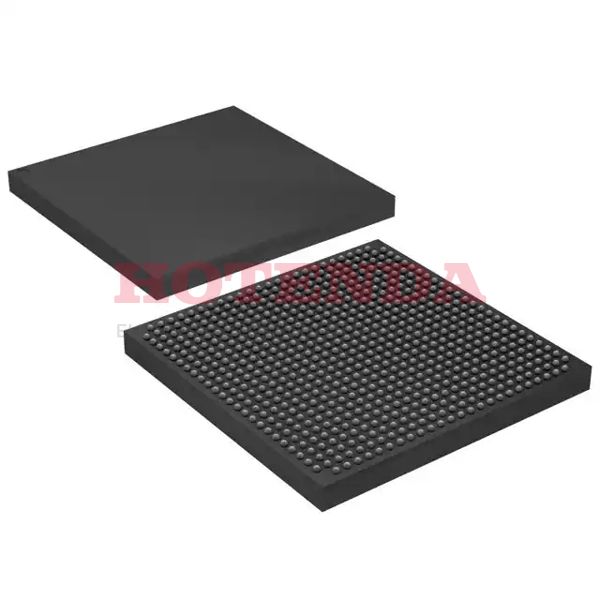

There are two packages that contain fpga chips: 672-BBGA, FCBGA package and X package. In this kind of FPGA, FIELD PROGRAMMABLE GATE ARRAY is used. There are 362 I/Os for better data transfer. In order to construct a fundamental building block, 10570 logic elements/cells are required. It is powered from a supply voltage of 1.5V. In this case, the FPGA part belongs to the Field Programmable Gate Arrays family. An attachment Surface Mount allows the FPGA module to be attached to the development board. There is a 1.425V~1.575V-volt supply voltage required for the device to operate. An FPGA belonging to the Stratix? GX series is referred to as an FPGA. In order to ensure a safe and efficient operation, it is important to maintain a temperature within 0°C~85°C TJ at all times. In order to make this device as versatile as possible, there are 362 different outputs included. In order to save space, this FPGA model has been contained in Tray. In total, there are a total of 672 terminations on fpga chips. The RAM bits that this device offer is 920448. Its base part number EP1SGX10 can be used to find related parts. 1057 LABs and CLBs are built into this FPGA. This is a battery operated device that operates on 1.51.5/3.3V. The architecture of the system is based on 1200 CLBs.
EP1SGX10DF672C7N Features
362 I/Os
Up to 920448 RAM bits
EP1SGX10DF672C7N Applications
There are a lot of Intel EP1SGX10DF672C7N FPGAs applications.
- ADAS
- Data center hardware accelerators
- Server Applications
- Enterprise networking
- Automotive Applications
- Defense Applications
- Industrial Ethernet
- ASIC prototyping
- Voice recognition
- Camera time adjustments
