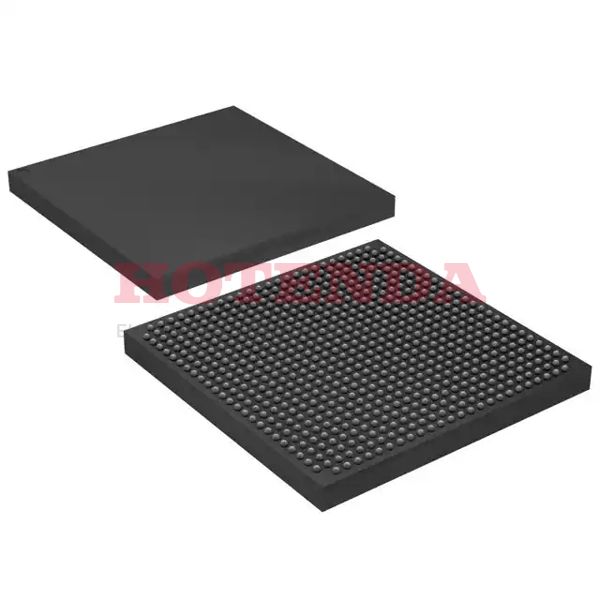

EP1SGX10DF672C5 Overview
This package is included in the 672-BBGA, FCBGA package and is available for purchase. Fpga chips consists of FIELD PROGRAMMABLE GATE ARRAY elements. The I/Os are designed to facilitate a more coherent transfer of data. Logic blocks consist of 10570 logic elements/cells. It is powered from a supply voltage of 1.5V. There is a Field Programmable Gate Arrays family component in this FPGA part. Using a Surface Mount connector, you can mount this FPGA module on the development board. In order for it to operate, the supply voltage must be 1.425V~1.575V . FPGAs belonging to the Stratix? GX series are a type of FPGA that belong to the Stratix? GX series of FPGAs. The operating temperature should be kept at 0°C~85°C TJ when operating. In this device, 366 outputs are incorporated in order to provide you with maximum flexibility. This FPGA model is contained in Tray for space saving. 672 terminations are present in total. Having a RAM bit size of 920448 means that this device will offer you a lot of memory. Its base part number EP1SGX10 can be used to find related parts. 1057 LABs and CLBs are built into this FPGA. An external power supply of 1.51.5/3.3V is required to power the device. For its architecture, 1200 CLB modules are used.
EP1SGX10DF672C5 Features
362 I/Os
Up to 920448 RAM bits
