EP1K30TC144-2N Overview

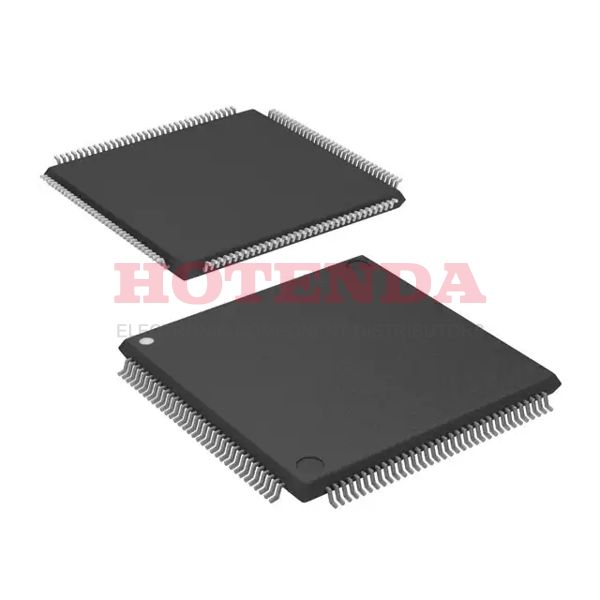

A 144-LQFP package is provided with this component. In this kind of FPGA, LOADABLE PLD is used. 102 I/Os are available for transferring data more efficiently. A fundamental building block consists of 1728 logic elements/cells. Fpga chips is powered from a supply voltage of 2.5V. In this case, the FPGA part belongs to the Field Programmable Gate Arrays family. Using a Surface Mount connector, you can mount this FPGA module on the development board. With a supply voltage of 2.375V~2.625V, this device operates with ease. It is a type of FPGA that belongs to the ACEX-1K? series of FPGAs. While operating, the operating temperature should be kept within a range of 0°C~70°C TA. This device is equipped with 102 separate outputs, which makes it a very versatile device. As a result of space limitations, this FPGA model has been included in Tray. Fpga chips is designed wFpga chipsh 144 terminations. There are 24576 RAM bits that are available with this device. You can find related parts by using the part number EP1K30, which is its base part number. An array of 216 LABs/CLBs is built into the FPGA. There is a 2.52.5/3.3V power supply that is required to operate it. There are 119000 gates in its basic building block. Typically, it uses a crystal oscillating at 37.5MHz in order to operate.
EP1K30TC144-2N Features
102 I/Os
Up to 24576 RAM bits
