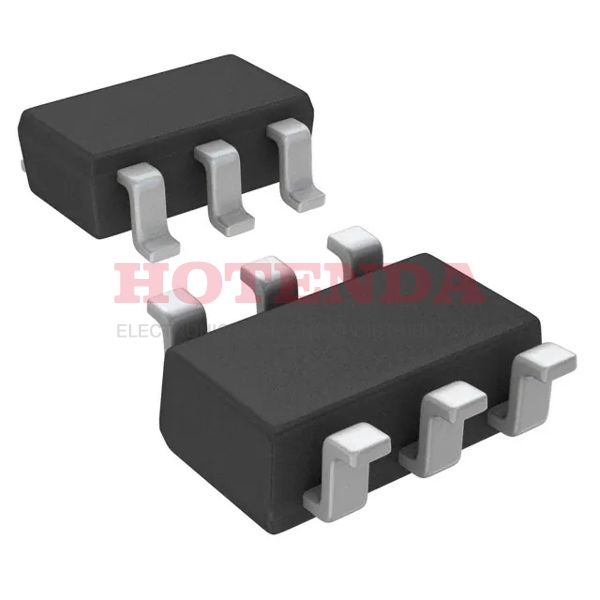

AS1329C-BTTT Overview
For optimal performance, this voltage regulator makes use of the Tape & Reel (TR) package. There is a SOT-23-6 Thin, TSOT-23-6 package available for this voltage regulator, as DC DC switching regulator is space-saving. There are 1 outputs configured on the voltage regulator. On its output pins, this adjusting voltage regulator generates Adjustable output. Surface Mount-mount switching regulator. In order for it to operate properly, dc to dc voltage regulator's operating temperature should be at -40°C~85°C TA. A DC-DC switching regulator such as this one switches at 1.2MHz. This voltage regulator is able to operate with the minimal input voltage of 0.65V. It is evident from the table below that adjusting voltage regulator's output voltage (Min/Fixed) is equal to 2.5V. As a result of the 850mA Switch output current, voltage regulator offers maximum flexibility in design. Voltage can be produced at 5V volts by voltage regulator. The switching regulator operation of the system is controlled by 6 pins. In order to use this voltage regulator 12v at its full potential, the output voltage should be kept at at least 2.5V. A maximum output current of 570mA A is provided to meet the switching regulator operation requirements. There is a maximum output voltage of 5V from this voltage regulator 12v.
AS1329C-BTTT Features
1 outputs
6 pins
AS1329C-BTTT Applications
There are a lot of ams AS1329C-BTTT Voltage Regulators applications.
- Printing
- Shearing machines
- Terrestrial set-top boxes
- Industrial robots
- Current source circuits
- Combined machine tools
- Program control systems
- Medical equipment
- Pipe bending machines
- Elevator lighting
