APT1608EC datasheet pdf and LED Indication - Discrete product details from Kingbright stock available on our website
SOT-23
APT1608EC Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
0603 (1608 Metric)
Number of Pins
2
Shape
RECTANGULAR
Packaging
Tape & Reel (TR)
Published
2008
Size / Dimension
1.60mm Lx0.80mm W
JESD-609 Code
e4
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
2
ECCN Code
EAR99
Terminal Finish
Gold (Au)
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Color
Red
Packing Method
TAPE AND REEL
Number of Functions
1
Case Code (Metric)
1608
Case Code (Imperial)
0603
Configuration
Standard
Voltage - Forward (Vf) (Typ)
2V
Viewing Angle
120°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
20mA
Lens Style
Rectangle with Flat Top
Lens Size
1.20mmx0.80mm
Luminous Intensity
12 mcd
Millicandela Rating
8mcd
Lens Transparency
Clear
Wavelength - Peak
627nm
Lens Color
Colorless
Wavelength - Dominant
617nm
Number of LEDs
1
Height
750μm
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:21774 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.226681
$0.226681
10
$0.213850
$2.1385
100
$0.201745
$20.1745
500
$0.190326
$95.163
1000
$0.179553
$179.553

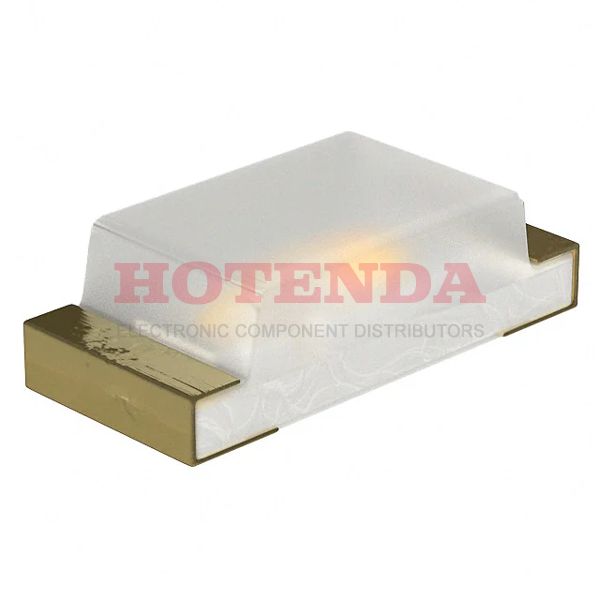

APT1608EC Product Details
The Kingbright APT1608EC is a discrete LED indication light in a 0805 SMD package. It features a bright red color and a clear lens. This LED is ideal for applications that require a small, bright indicator light. It is suitable for use in a variety of applications, including automotive, consumer electronics, and industrial equipment. It is also RoHS compliant and has a long life expectancy. The APT1608EC is a reliable and cost-effective solution for any application requiring a discrete LED indication light.
