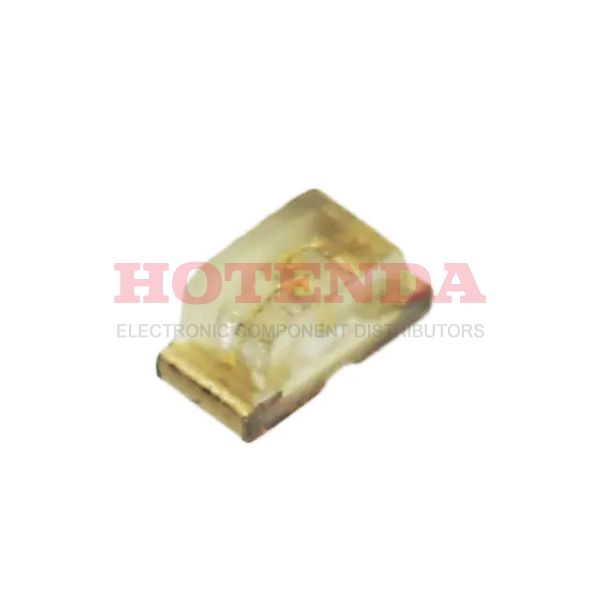

APHHS1005CGCK datasheet pdf and LED Indication - Discrete product details from Kingbright stock available on our website
SOT-23
APHHS1005CGCK Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
0402 (1005 Metric)
Number of Pins
2
Shape
RECTANGULAR
Packaging
Tape & Reel (TR)
Published
2010
Size / Dimension
1.00mm Lx0.50mm W
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
2
ECCN Code
EAR99
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Color
Green
Subcategory
Visible LEDs
Packing Method
TAPE AND REEL 7"
Number of Functions
1
Case Code (Metric)
1005
Case Code (Imperial)
0402
Configuration
Standard
Voltage - Forward (Vf) (Typ)
2.1V
Viewing Angle
120°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
20mA
Lens Style
Rectangle with Flat Top
Lens Size
0.80mmx0.50mm
Luminous Intensity
50 mcd
Millicandela Rating
50mcd
Lens Transparency
Clear
Wavelength - Peak
574nm
Lens Color
Colorless
Wavelength - Dominant
570nm
Number of LEDs
1
Reverse Voltage-Max
5V
Height
600μm
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:15908 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
APHHS1005CGCK Product Details
Description:
The Kingbright APHHS1005CGCK is a discrete LED indication device with a green clear chip SMD package. It has a low power consumption and a wide viewing angle of 140°. The device is RoHS compliant and has a long life expectancy of up to 100,000 hours.
Features:
• Low power consumption • Wide viewing angle of 140° • RoHS compliant • Long life expectancy of up to 100,000 hours • High luminous intensity • High reliability • Low thermal resistance
Applications:
The Kingbright APHHS1005CGCK is suitable for a wide range of applications, including automotive, industrial, medical, and consumer electronics. It can be used for backlighting, indicators, and displays. It is also suitable for use in lighting fixtures, traffic signals, and other applications that require a bright, reliable LED indication.
