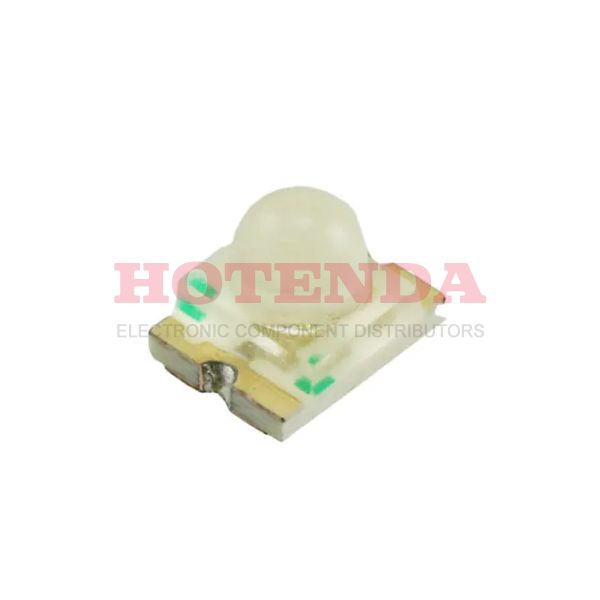

APD3224SYCK-F01 datasheet pdf and LED Indication - Discrete product details from Kingbright stock available on our website
SOT-23
APD3224SYCK-F01 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
1210 (3225 Metric)
Number of Pins
2
Packaging
Tape & Reel (TR)
Published
2010
Size / Dimension
3.20mm Lx2.40mm W
JESD-609 Code
e3
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
2
ECCN Code
EAR99
Terminal Finish
Tin (Sn)
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Color
Yellow
Packing Method
TAPE AND REEL
Number of Functions
1
Case Code (Metric)
3225
Case Code (Imperial)
1210
Configuration
Standard
Voltage - Forward (Vf) (Typ)
2V
Viewing Angle
20°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
20mA
Lens Style
Round with Domed Top
Lens Size
1.70mm Dia
Luminous Intensity
1.3 cd
Millicandela Rating
1300mcd
Lens Transparency
Clear
Lens Color
Colorless
Wavelength - Dominant
590nm
Number of LEDs
1
T-code
T-3/4
Peak Wavelength
590 nm
Height
2.4mm
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:17129 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.771160
$0.77116
10
$0.727509
$7.27509
100
$0.686330
$68.633
500
$0.647481
$323.7405
1000
$0.610831
$610.831
APD3224SYCK-F01 Product Details
Description: The Kingbright APD3224SYCK-F01 is a discrete LED indication component with a 3.2 x 2.4 mm package size. It has a yellow-green color and a wavelength of 590 nm. It is a surface mount device (SMD).
Features: - Compact size of 3.2 x 2.4 mm - Yellow-green color with a wavelength of 590 nm - Surface mount device (SMD) - Low power consumption - High brightness - Long life
Applications: The Kingbright APD3224SYCK-F01 is suitable for a variety of applications, including automotive, consumer electronics, industrial, and medical. It can be used for status indication, backlighting, and decorative lighting.
