5CGXFC4F6M11I7N Overview

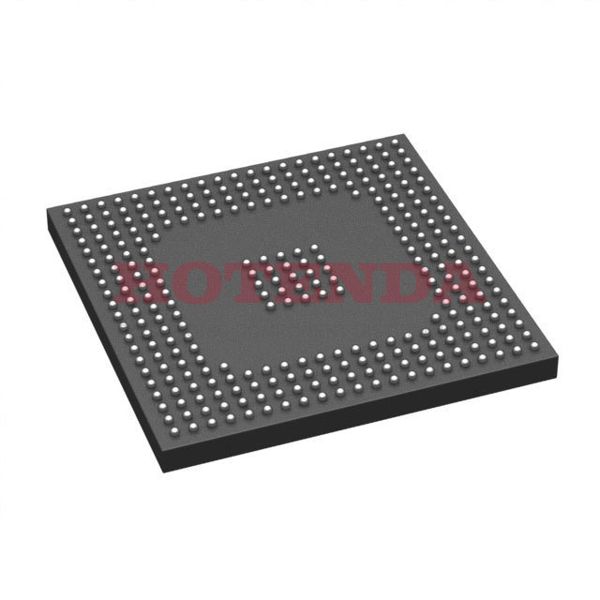

In the 301-TFBGA package, you will find fpga chips. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. The I/Os are designed to facilitate a more coherent transfer of data. A fundamental building block contains 50000 logic elements or cells. It is powered from a supply voltage of 1.1V. The Field Programmable Gate Arrays family of FPGAs includes this part. An attachment Surface Mount allows the FPGA module to be attached to the development board. This device is powered by a 1.07V~1.13V battery. It is a type of FPGA belonging to the Cyclone? V GX seies. Fpga chips is recommended that the operating temperature be kept wFpga chipshin the range -40°C~100°C TJ while the machine is operating. With this device, you will be able to make use of 129 outputs. As a result of space limitations, this FPGA model has been included in Tray. In total, it has 301 terminations on each end. The RAM bits that this device offer is 2862080. You can find related parts by using the part number 5CGXFC4, which is its base part number. 18868 LABs and CLBs are built into this FPGA. There is a 1.11.2/3.32.5V power supply that is required to operate it.
5CGXFC4F6M11I7N Features
129 I/Os
Up to 2862080 RAM bits
5CGXFC4F6M11I7N Applications
There are a lot of Intel 5CGXFC4F6M11I7N FPGAs applications.
- High Performance Computing
- Radar and Sensors
- OpenCL
- Integrating multiple SPLDs
- Distributed Monetary Systems
- Artificial intelligence (AI)
- Data center hardware accelerators
- Industrial Ethernet
- Aerospace and Defense
- Aircraft navigation
