5CGXBC7B7M15C8N Overview

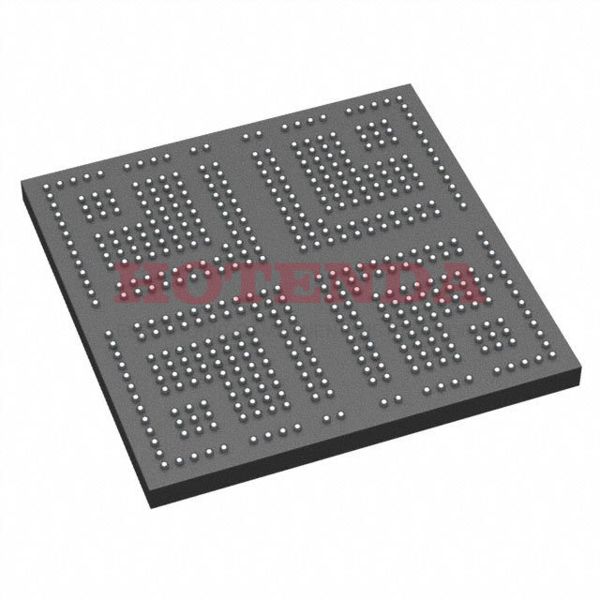

A 484-LFBGA package is provided with this component. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. There are 240 I/Os for better data transfer. To form a fundamental building block, there are 149500 logic elements/cells. Supply voltage is 1.1V volts. The Field Programmable Gate Arrays family of FPGA parts includes this part. The Surface Mount-slot connector on the FPGA module can be connected to the development board. In order for it to operate, the supply voltage must be 1.07V~1.13V . The FPGA belongs to the Cyclone? V GX series of FPGAs, and it is one type of FPGA. During the operation of the system, the operating temperature should remain within the range of 0°C~85°C TJ. In this device, there are 240 outputs that can be used. Fpga chips is designed to maximiTraye space efficiency by containing the FPGA model in Tray. In total, it has a total of 484 terminations. The RAM bits that this device offer is 7880704. Related parts can be found by using its base part number 5CGXBC7. 56480 LABs/CLBs are configured on this FPGA. Fpga electronics operates from a 1.11.2/3.32.5V power supply.
5CGXBC7B7M15C8N Features
240 I/Os
Up to 7880704 RAM bits
5CGXBC7B7M15C8N Applications
There are a lot of Intel 5CGXBC7B7M15C8N FPGAs applications.
- Integrating multiple SPLDs
- Software-defined radios
- Scientific Instruments
- Computer hardware emulation
- Secure Communication
- Medical ultrasounds
- Security systems
- Data center search engines
- Electronic Warfare
- Automotive Applications
