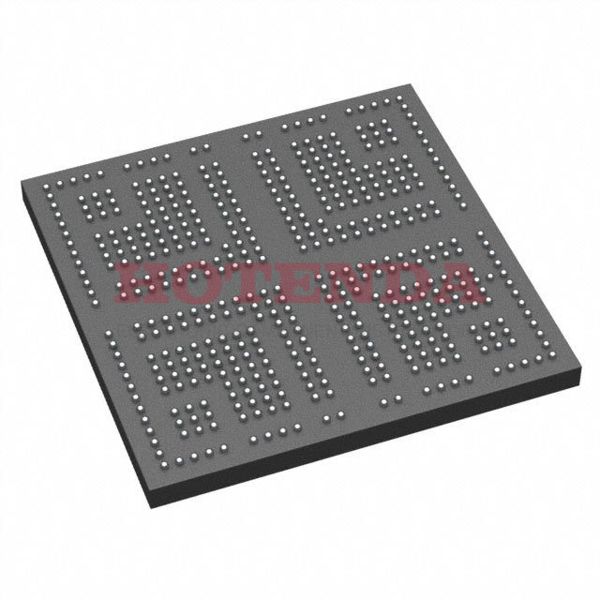

5CEFA7M15C6N Overview
In the 484-LFBGA package, you will find fpga chips. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. 240 I/Os are available for transferring data more efficiently. There are 149500 logic elements/cells to form a fundamental building block. Fpga chips is powered from a supply voltage of 1.1V. The Field Programmable Gate Arrays family of FPGA parts includes this part. The Surface Mount-slot connector on the FPGA module can be connected to the development board. This device is powered by a 1.07V~1.13V battery. It is a type of FPGA that belongs to the Cyclone? V E series of FPGAs. Fpga chips is recommended that the operating temperature be kept wFpga chipshin the range 0°C~85°C TJ while the machine is operating. With this device, you will be able to make use of 240 outputs. In order to save space, this FPGA model has been contained in Tray. The total number of terminations is 484. Having a RAM bit size of 7880704 means that this device will offer you a lot of memory. Its base part number 5CEFA7 can be used to find related parts. A total of 56480 LABs/CLBs are included in this FPGA. In order for fpga electronics to work, fpga electronics requires a 1.11.2/3.32.5V power supply. As most of the logic cells for the building blocks are 150000 logic cells, it incorporates a lot of logic.
5CEFA7M15C6N Features
240 I/Os
Up to 7880704 RAM bits
5CEFA7M15C6N Applications
There are a lot of Intel 5CEFA7M15C6N FPGAs applications.
- Industrial Ethernet
- Distributed Monetary Systems
- Wireless Communications
- Secure Communication
- Security systems
- Embedded Vision
- Medical Electronics
- Automation
- Random logic
- Military Temperature
