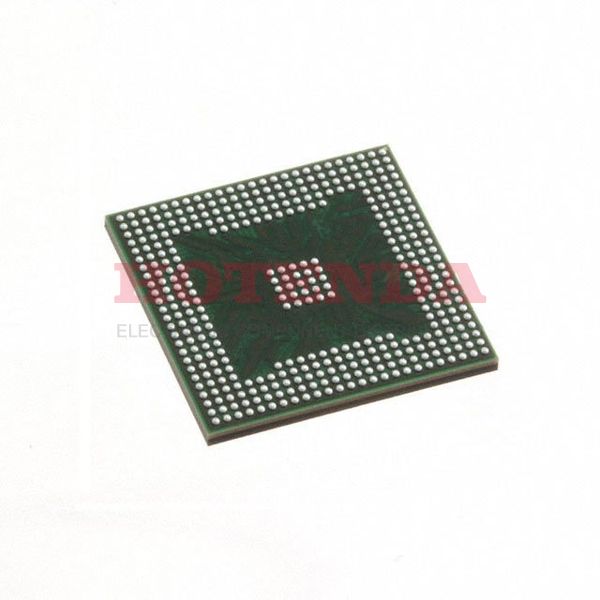

5CEFA5M13C8N Overview
This package is included in the 383-TFBGA package and is available for purchase. FIELD PROGRAMMABLE GATE ARRAY is the component of this type of FPGA. The device has 175 I/O ports for more coherent data transfer. The basic building blocks of logic contain 77000 logic elements/cells. Fpga chips is powered from a supply voltage of 1.1V. FPGA parts like this belong to the Field Programmable Gate Arrays family. An FPGA module can be attached to a development board with a Surface Mount-pin. Powered by a 1.07V~1.13V supply voltage, fpga chips is able to operate at high speeds. It is a type of FPGA belonging to the Cyclone? V E seies. During the operation of the system, the operating temperature should remain within the range of 0°C~85°C TJ. A total of 175 outputs are incorporated into this device. It is for space saving reasons that this FPGA model is contained in Tray. In total, there are a total of 383 terminations on fpga chips. A device like this one offers 5001216 RAM bits, which is a considerable amount of memory. Related parts can be found by using its base part number 5CEFA5. Fpga electronics contains 29080 LABs/CLBs in an array. Fpga electronics operates from a 1.11.2/3.32.5V power supply.
5CEFA5M13C8N Features
175 I/Os
Up to 5001216 RAM bits
5CEFA5M13C8N Applications
There are a lot of Intel 5CEFA5M13C8N FPGAs applications.
- Artificial intelligence (AI)
- Aerospace and Defense
- Aircraft navigation
- Digital signal processing
- Automotive
- ASIC prototyping
- Data center hardware accelerators
- Server Applications
- Computer hardware emulation
- Medical ultrasounds
