5CEFA5M13C7N Overview

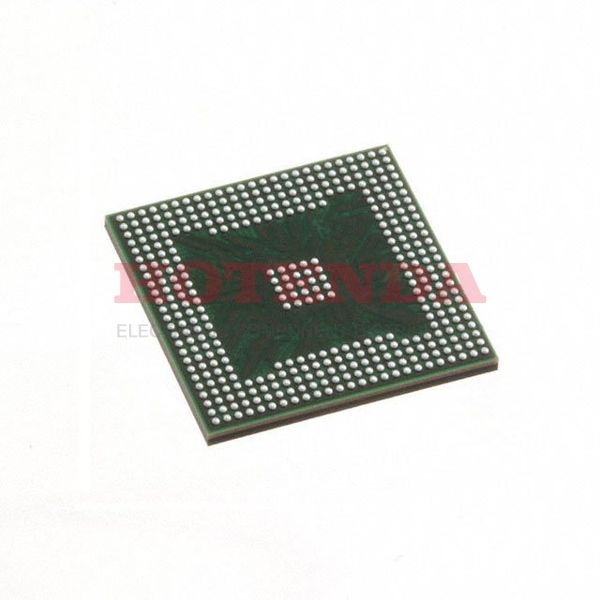

Fpga chips is supplied in the 383-TFBGA package. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. This device features 175 I/Os in order to transfer data in a more efficient manner. Logic elements/cells form the fundamental building block of a computer. In order for the device to operate, a supply voltage of 1.1V volts needs to be provided. An FPGA part from the Field Programmable Gate Arrays family. The Surface Mount-slot on the development board allows you to attach the FPGA module. In order for it to operate, the supply voltage must be 1.07V~1.13V . FPGAs belonging to the Cyclone? V E series are a type of FPGA that belong to the Cyclone? V E series of FPGAs. Fpga chips is important to maintain the operating temperature wFpga chipshin the range of 0°C~85°C TJ when operating the machine. In order to make this device as versatile as possible, there are 175 different outputs included. Using the Tray layout, this FPGA model can be contained in a very small amount of space. In total, it has a total of 383 terminations. The RAM bits that are offered by this fpga chips are 5001216. For related parts, use its base part number 5CEFA5. 29080 LABs/CLBs are integrated into this FPGA. Power is supplied to the device by a 1.11.2/3.32.5V battery.
5CEFA5M13C7N Features
175 I/Os
Up to 5001216 RAM bits
5CEFA5M13C7N Applications
There are a lot of Intel 5CEFA5M13C7N FPGAs applications.
- Aircraft navigation
- Military Temperature
- Distributed Monetary Systems
- Security systems
- Computer hardware emulation
- Filtering and communication encoding
- Electronic Warfare
- Embedded Vision
- Automation
- Medical imaging
